• DMX, Klingnet & Artnet compatible
• 5 x 5 Matrix for text and animations
• 3W Power LEDs with 8° lenses
• Built-in Ethernet switch for easy daisy chain

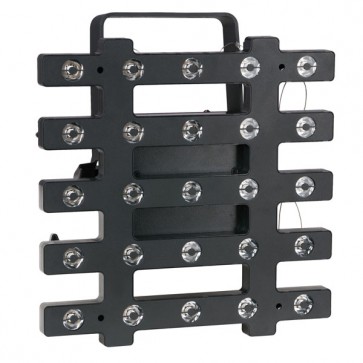

The Showtec White Pix is a LED Matrix Blinder panel with pixel control. It can be used as blinder and animated blinder panel. The 5x5 matrix with a 60mm pixelpitch makes it possible to display text and all kinds of animated graphics. The 25 pcs of powerful 3200K LEDs with 8° lenses will generate narrow beams of powerful light. It is loaded with on board vivid patterns but can be controlled by Klingnet, Artnet and DMX protocol to ensure flexibility in operation with any kind of video or pixel software. A strong housing with flexible fast rigging possibilities, powercon connections and a built-in Ethernet switch for daisy chain of artnet makes it perfect for rentals, live events, broadcast, theatre, and touring applications. The White pix has the same measurements as the DMT Pixeltile which makes them easy to combine in a grid.
• 5 x 5 Matrix for text and animations
• 3W Power LEDs with 8° lenses
• Built-in Ethernet switch for easy daisy chain
The Showtec White Pix is a LED Matrix Blinder panel with pixel control. It can be used as blinder and animated blinder panel. The 5x5 matrix with a 60mm pixelpitch makes it possible to display text and all kinds of animated graphics. The 25 pcs of powerful 3200K LEDs with 8° lenses will generate narrow beams of powerful light. It is loaded with on board vivid patterns but can be controlled by Klingnet, Artnet and DMX protocol to ensure flexibility in operation with any kind of video or pixel software. A strong housing with flexible fast rigging possibilities, powercon connections and a built-in Ethernet switch for daisy chain of artnet makes it perfect for rentals, live events, broadcast, theatre, and touring applications. The White pix has the same measurements as the DMT Pixeltile which makes them easy to combine in a grid.
Specifikationer
Detaljer
• Light Source
• LED System: 25x3W (Edison LEDs)
• Drive Current: 630mA
• Output: 160lumen
• Color temperature: 3200K
• Refresh rate: 100Hz
• Electrical
• Power Supply: 100-240 VAC, 50/60Hz
• Power Consumption: 120W Max
• Control
• Control Mode: DMX512, Artnet, Klingnet
• DMX channels: 8/25
• Optical system
• Dimmer: 0-100%
• Max strobe freq.: 30Hz
• Field Angle: 8 degrees
• Pixels: 5Hx5V
• Pixelpitch: 60mm
• Physical
• Dimensions: 300x 300x 95mm
• Weight: 4Kg
• Housing: Metal with fire retardant plastic
• Color: Black powder coated
• Power Connectors: Blue/White Power connector
• DMX Connectors: XLR 3pole In/Out
• Data Connectors: RJ-45 In/Out
• Safety
• Operation temperature: -5~45°
• Protection rate: IP20
• LED System: 25x3W (Edison LEDs)
• Drive Current: 630mA
• Output: 160lumen
• Color temperature: 3200K
• Refresh rate: 100Hz
• Electrical
• Power Supply: 100-240 VAC, 50/60Hz
• Power Consumption: 120W Max
• Control
• Control Mode: DMX512, Artnet, Klingnet
• DMX channels: 8/25
• Optical system
• Dimmer: 0-100%
• Max strobe freq.: 30Hz
• Field Angle: 8 degrees
• Pixels: 5Hx5V
• Pixelpitch: 60mm
• Physical
• Dimensions: 300x 300x 95mm
• Weight: 4Kg
• Housing: Metal with fire retardant plastic
• Color: Black powder coated
• Power Connectors: Blue/White Power connector
• DMX Connectors: XLR 3pole In/Out
• Data Connectors: RJ-45 In/Out
• Safety
• Operation temperature: -5~45°
• Protection rate: IP20
