Beskrivelse
Detaljer
• LED bar med 8 x 15W COB RGB dioder
• Output: Lux @ 2m: 1050 - refreshrate 7,8 KHz
• RGB farvemix - IEC stik in / out
• 0-100% dimmer - strob 0-20Hz
• DMX styret: 2, 3, 5, 6, 12, el 24 kanaler
• Spredning: 60 grader - idéel til wall wash
• Fødder medfølger - gevind for direkte montage
af glamps eller G-krog - blæserkølet
• LED display - Standalone/musik/custom control
• Mål 703 x 120 x 130 mm(LxBxH) - Vægt 2,8kg -120W
Kraftig LED wash lampe til f.eks belysning af væg, loft eller andre flader. Eller som blinder. Med de mange muligheder for DMX styring kan opnås fuld kontrol over lampen.
Robust lampehus med IEC stik in/out til at linke flere led lamper sammen.
• Lux (@ 2 meter): Red: 300
• Lux (@ 2 meter): Green: 340
• Lux (@ 2 meter): Blue: 410
• Lux (@ 2 meter): Full: 1050
• Max. distance: 15m
• Colour range: 16,7 million additive colors
• LED Quantity: 8x 15W COB RGB LED
• Drive current: 500mA
• Display: LED display for auto and
• custom control
• Control: DMX-512, Auto, Master/Slave
• DMX Channels: 2,3, 5, 6, 12, 24CH
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam Angle: 60 degrees
• Colour: Black
• Cooling: Forced Cooling
• Input-voltage: 100~240VAC...50/60Hz
• Power: 120W @FO
• IP Rating: IP20
• Dimensions: 703 x 120 x 130 mm
• Weight: 2,8 kg
• Refreshrate: 7,8 KHz
Leverandør beskrivelse:
• 3-in-1 COB LED Technology
• Linkable
• Multiple DMX modes for total pixel control
• Large Beam Angle

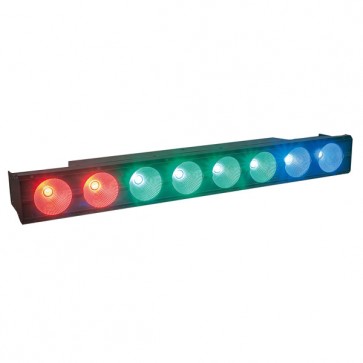

The Pixel Bar 8 COB is a very powerful batten which uses the latest technology COB RGB Leds. Because of this new technology it is possible to achieve a very high light output with a wide beamangle, without getting a lot of uncomfortable glare. The advanced menu makes it possible to control the batten in different modes such as DMX, stand alone, music.
• Output: Lux @ 2m: 1050 - refreshrate 7,8 KHz
• RGB farvemix - IEC stik in / out
• 0-100% dimmer - strob 0-20Hz
• DMX styret: 2, 3, 5, 6, 12, el 24 kanaler
• Spredning: 60 grader - idéel til wall wash
• Fødder medfølger - gevind for direkte montage
af glamps eller G-krog - blæserkølet
• LED display - Standalone/musik/custom control
• Mål 703 x 120 x 130 mm(LxBxH) - Vægt 2,8kg -120W
Kraftig LED wash lampe til f.eks belysning af væg, loft eller andre flader. Eller som blinder. Med de mange muligheder for DMX styring kan opnås fuld kontrol over lampen.
Robust lampehus med IEC stik in/out til at linke flere led lamper sammen.
• Lux (@ 2 meter): Red: 300
• Lux (@ 2 meter): Green: 340
• Lux (@ 2 meter): Blue: 410
• Lux (@ 2 meter): Full: 1050
• Max. distance: 15m
• Colour range: 16,7 million additive colors
• LED Quantity: 8x 15W COB RGB LED
• Drive current: 500mA
• Display: LED display for auto and
• custom control
• Control: DMX-512, Auto, Master/Slave
• DMX Channels: 2,3, 5, 6, 12, 24CH
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam Angle: 60 degrees
• Colour: Black
• Cooling: Forced Cooling
• Input-voltage: 100~240VAC...50/60Hz
• Power: 120W @FO
• IP Rating: IP20
• Dimensions: 703 x 120 x 130 mm
• Weight: 2,8 kg
• Refreshrate: 7,8 KHz
Leverandør beskrivelse:
• 3-in-1 COB LED Technology
• Linkable
• Multiple DMX modes for total pixel control
• Large Beam Angle
The Pixel Bar 8 COB is a very powerful batten which uses the latest technology COB RGB Leds. Because of this new technology it is possible to achieve a very high light output with a wide beamangle, without getting a lot of uncomfortable glare. The advanced menu makes it possible to control the batten in different modes such as DMX, stand alone, music.
Specifikationer
Detaljer
• Lux (@ 2 meter): Red: 300
• Lux (@ 2 meter): Green: 340
• Lux (@ 2 meter): Blue: 410
• Lux (@ 2 meter): Full: 1050
• Max. distance: 15m
• Colour range: 16,7 million additive colors
• LED Quantity: 8x 15W COB RGB LED
• Drive current: 500mA
• Display: LED display for auto and
• custom control
• Control: DMX-512, Auto, Master/Slave
• DMX Channels: 2,3, 5, 6, 12, 24CH
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam Angle: 60 degrees
• Colour: Black
• Cooling: Forced Cooling
• Input-voltage: 100~240VAC...50/60Hz
• Power: 120W @FO
• IP Rating: IP20
• Dimensions: 703 x 120 x 130 mm
• Weight: 2,8 kg
• Refreshrate: 7,8 KHz
• Lux (@ 2 meter): Green: 340
• Lux (@ 2 meter): Blue: 410
• Lux (@ 2 meter): Full: 1050
• Max. distance: 15m
• Colour range: 16,7 million additive colors
• LED Quantity: 8x 15W COB RGB LED
• Drive current: 500mA
• Display: LED display for auto and
• custom control
• Control: DMX-512, Auto, Master/Slave
• DMX Channels: 2,3, 5, 6, 12, 24CH
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam Angle: 60 degrees
• Colour: Black
• Cooling: Forced Cooling
• Input-voltage: 100~240VAC...50/60Hz
• Power: 120W @FO
• IP Rating: IP20
• Dimensions: 703 x 120 x 130 mm
• Weight: 2,8 kg
• Refreshrate: 7,8 KHz
