Video
Beskrivelse
Detaljer
• Meget kraftig 75W LED diode som lyskilde
• Lux @ 1 m: 24.500 lux
• 8 eller14 DMX kanaler - spredning 17-20 grader
• 8 farver + hvid - splitfarver - rainboweffekt
• Strobe 1-20 Hz (blink i sek.) - Dimmer 0-100%
• 7 roterende gobos (heraf 2 i glas) - gobo shake
• Udskiftlig gobo stør. 24mm ydre/20mm gobosize
• Motor focus - 3 facet prisme - 16 bit
• Shutter er elektronisk - ikke mekanisk
• 540 pan/270 tilt grader - indexerede goboer
• 16 indbyggede programer kan igangsættes via DMX
men også fra display, master/slave, lydstyring
• Mål 340 x 248 x 446mm (LxBxH) - 11 kg - 170Watt
Første reelle alternativ til 250W MSD movinghead!! 35% kraftigere end Phantom MSD250W modellen! Efterfølgeren til den populære Phantom 50. Markedets kraftigste LED movinghead i denne størrelse.
Driftsikkerheden på Phantom LED movinghead er den bedste vi nogen sinde har haft på movinghead. Så service-omkostninger kan holdes på et minimum.
Phantom 75 LED er utrolig kompakt og giver lys- udbytte og funktioner, der er meget attraktive for prisen - og til en kvalitet, der ikke findes bedre. Lyskilden består af 1 stk. 75W's LED diode og den har en levetid på minimum 50.000 timer.
Bevægelserne er lynhurtige og designet smart. Når glasgobo og farver blandes kan laves effekter, der normalt hører langt dyrere movinghead til.
Hvis varen vises på lager kan den ses i vores demorum.
Leverandør beskrivelse:
• 24.500 Lux @ 1 M
• 7 Rotating Gobos & 8 Colors
• 16 Built-in programs selectable by DMX
• Gobo shake, gobo rotate and 3-facet prism
• Motorized focus

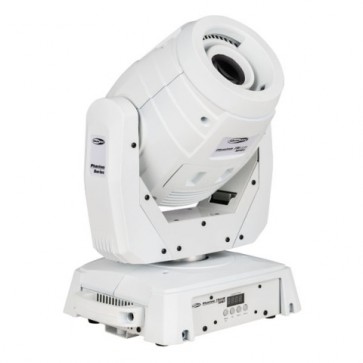

The Phantom 75 LED spot is a medium size powerful moving head with a 75W white LED light-source. It is very complete with 7 Gobo's, 8 dichroic filters and lots of extra functionalities like gobo-shake, gobo-rotate, prism, split & rainbow colors. Because of the LED source the shutter is electronic not mechanical. Focus is motorized and it has a mechanical zoom. You can choose between a 8 or a 14 DMX channel personality. If you like to operate without controller you can use the 16 built-in programs which can run automatically, sound-active or in master/slave mode. The stylish design and lightweight housing make this moving head very attractive and ergonomic. The gobos can be changed very easily by a handy lid. Check the online product video for more details.
• Lux @ 1 m: 24.500 lux
• 8 eller14 DMX kanaler - spredning 17-20 grader
• 8 farver + hvid - splitfarver - rainboweffekt
• Strobe 1-20 Hz (blink i sek.) - Dimmer 0-100%
• 7 roterende gobos (heraf 2 i glas) - gobo shake
• Udskiftlig gobo stør. 24mm ydre/20mm gobosize
• Motor focus - 3 facet prisme - 16 bit
• Shutter er elektronisk - ikke mekanisk
• 540 pan/270 tilt grader - indexerede goboer
• 16 indbyggede programer kan igangsættes via DMX
men også fra display, master/slave, lydstyring
• Mål 340 x 248 x 446mm (LxBxH) - 11 kg - 170Watt
Første reelle alternativ til 250W MSD movinghead!! 35% kraftigere end Phantom MSD250W modellen! Efterfølgeren til den populære Phantom 50. Markedets kraftigste LED movinghead i denne størrelse.
Driftsikkerheden på Phantom LED movinghead er den bedste vi nogen sinde har haft på movinghead. Så service-omkostninger kan holdes på et minimum.
Phantom 75 LED er utrolig kompakt og giver lys- udbytte og funktioner, der er meget attraktive for prisen - og til en kvalitet, der ikke findes bedre. Lyskilden består af 1 stk. 75W's LED diode og den har en levetid på minimum 50.000 timer.
Bevægelserne er lynhurtige og designet smart. Når glasgobo og farver blandes kan laves effekter, der normalt hører langt dyrere movinghead til.
Hvis varen vises på lager kan den ses i vores demorum.
Leverandør beskrivelse:
• 24.500 Lux @ 1 M
• 7 Rotating Gobos & 8 Colors
• 16 Built-in programs selectable by DMX
• Gobo shake, gobo rotate and 3-facet prism
• Motorized focus
The Phantom 75 LED spot is a medium size powerful moving head with a 75W white LED light-source. It is very complete with 7 Gobo's, 8 dichroic filters and lots of extra functionalities like gobo-shake, gobo-rotate, prism, split & rainbow colors. Because of the LED source the shutter is electronic not mechanical. Focus is motorized and it has a mechanical zoom. You can choose between a 8 or a 14 DMX channel personality. If you like to operate without controller you can use the 16 built-in programs which can run automatically, sound-active or in master/slave mode. The stylish design and lightweight housing make this moving head very attractive and ergonomic. The gobos can be changed very easily by a handy lid. Check the online product video for more details.
Specifikationer
Detaljer
• Output
• Lux @ 1m: 34.500
• Beam Angle: 17°-20° Manual
• Light Source: 1 x 75W White LED
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 170W max. at full output
• LED Drive Current: 16.5A
• Control
• On-Board: Display for auto, Sound control &
• Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 14ch /Basic 8ch
• Optical system
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Focus: Motorized
• Prism: 3-facet prism
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Special: Pan / Tilt movement blackout,
• User-selectable Pan & Tilt ranges,
• 540°/360°/180°, Reverse Pan / Tilt movement
• Gobos & Color
• Gobo: 2 glass + 5 metal gobos (replaceable)
• Gobo functions: Gobo-flow effect,Gobo shake
• Rotation: Bi-directional
• Gobo inner diameter: 20 mm
• Gobo outer diameter: 24 mm
• Colors: 8 dichroic-filters + white
• Color functions: Split colors, Rainbow-flow effect
• Physical
• Color: White
• Housing: Metal & Flame-retardant plastic
• Fixture Connection: XLR Data in/out, IEC Power in
• Dimensions (WxDxH): 340 x 248 x 446 mm
• Weight: 11 kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C
• Lux @ 1m: 34.500
• Beam Angle: 17°-20° Manual
• Light Source: 1 x 75W White LED
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 170W max. at full output
• LED Drive Current: 16.5A
• Control
• On-Board: Display for auto, Sound control &
• Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 14ch /Basic 8ch
• Optical system
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Focus: Motorized
• Prism: 3-facet prism
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Special: Pan / Tilt movement blackout,
• User-selectable Pan & Tilt ranges,
• 540°/360°/180°, Reverse Pan / Tilt movement
• Gobos & Color
• Gobo: 2 glass + 5 metal gobos (replaceable)
• Gobo functions: Gobo-flow effect,Gobo shake
• Rotation: Bi-directional
• Gobo inner diameter: 20 mm
• Gobo outer diameter: 24 mm
• Colors: 8 dichroic-filters + white
• Color functions: Split colors, Rainbow-flow effect
• Physical
• Color: White
• Housing: Metal & Flame-retardant plastic
• Fixture Connection: XLR Data in/out, IEC Power in
• Dimensions (WxDxH): 340 x 248 x 446 mm
• Weight: 11 kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C
