Beskrivelse
Detaljer
• 90W COB LED Source
• 7 DMX channels
• Multi-voltage
• Large 90 degree beam angle
• Refreshrate: 7,8 KHz
Leverandør beskrivelse:
• 90W COB LED Source
• 7 DMX channels
• Multi-voltage
• Large 90 degree beam angle

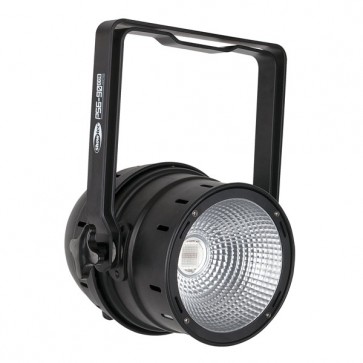

The Showtec PAR56 COB RGB Spot is a new technology of LED packaging for LED light engines. Because Multi LED chips are packaged together as one lighting module it is now possible to achieve a very high light output without narrowing the beam angle. Due to the special design of the mirror it is possible to project a light beam up to 90 degree's without getting different color shades ore high spots on the projected surface. This effect is great for most applications where you would need an equally divided wash of light.
• 7 DMX channels
• Multi-voltage
• Large 90 degree beam angle
• Refreshrate: 7,8 KHz
Leverandør beskrivelse:
• 90W COB LED Source
• 7 DMX channels
• Multi-voltage
• Large 90 degree beam angle
The Showtec PAR56 COB RGB Spot is a new technology of LED packaging for LED light engines. Because Multi LED chips are packaged together as one lighting module it is now possible to achieve a very high light output without narrowing the beam angle. Due to the special design of the mirror it is possible to project a light beam up to 90 degree's without getting different color shades ore high spots on the projected surface. This effect is great for most applications where you would need an equally divided wash of light.
Specifikationer
Detaljer
• Output
• Lux @2m: R 360
• G 380
• B 490
• RGB 1200
• Max distance: 10m
• LED Quantity: 1 x 90W RGB COB
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Refreshrate: 7,8 KHz
• Beam Angle: 90 degrees
• Control
• On Board: Display for easy Set Up
• Options: DMX512, Auto, Manual
• DMX personality: 3, 6, 7 Channel
• Filterframe: Not available
• Barndoor: optional available (43302)
• Electrical
• Input Voltage: 100~240VAC...50/60Hz
• Power consumption: 98W max @FO
• Physical
• Dimensions (LxWxH): 240 x 172 x 330 mm
• Weight: 2,3 kg
• IP Rating: IP-20
• Connections: Schuko + XLR 3 pole
• Cooling: Forced Cooling (Fan)
• Lux @2m: R 360
• G 380
• B 490
• RGB 1200
• Max distance: 10m
• LED Quantity: 1 x 90W RGB COB
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Refreshrate: 7,8 KHz
• Beam Angle: 90 degrees
• Control
• On Board: Display for easy Set Up
• Options: DMX512, Auto, Manual
• DMX personality: 3, 6, 7 Channel
• Filterframe: Not available
• Barndoor: optional available (43302)
• Electrical
• Input Voltage: 100~240VAC...50/60Hz
• Power consumption: 98W max @FO
• Physical
• Dimensions (LxWxH): 240 x 172 x 330 mm
• Weight: 2,3 kg
• IP Rating: IP-20
• Connections: Schuko + XLR 3 pole
• Cooling: Forced Cooling (Fan)
