Video
Beskrivelse
Detaljer
• Beam & Wash effect
• Ultra-fast movements
• 1 Clamp rigging
• Multiple dimming curves
• Battery powered menu
• Manual zoom (7, 25, 50 degrees)

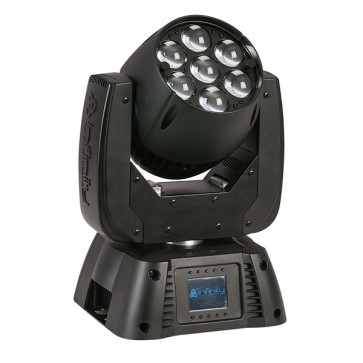

The Infinity® iW-715 is a compact and powerful moving head with both beam and wash functions. Seven, 15W, quad color RGBW LEDs delivering rich colors, a bright white, as well as trendy pastel colors. A 3-step manual zoom function allows you to adjust your beam in three different degrees: 7, 25 and 50 degrees. Multiple dimming curves can be selected by the GUI where both, halogen modes or quick dimming can be achieved. Dimming and strobe are controlled by a microprocessor, ensuring smooth 0-100% dimming as well high speed 0-20Hz strobe effects. Either you need a compact beam or a compact wash light the iW-715 will do the job.
• Ultra-fast movements
• 1 Clamp rigging
• Multiple dimming curves
• Battery powered menu
• Manual zoom (7, 25, 50 degrees)
The Infinity® iW-715 is a compact and powerful moving head with both beam and wash functions. Seven, 15W, quad color RGBW LEDs delivering rich colors, a bright white, as well as trendy pastel colors. A 3-step manual zoom function allows you to adjust your beam in three different degrees: 7, 25 and 50 degrees. Multiple dimming curves can be selected by the GUI where both, halogen modes or quick dimming can be achieved. Dimming and strobe are controlled by a microprocessor, ensuring smooth 0-100% dimming as well high speed 0-20Hz strobe effects. Either you need a compact beam or a compact wash light the iW-715 will do the job.
Specifikationer
Detaljer
• Output
• Lux @ 2m: 25200
• Beam Angle: 7/25/50° Manual adjustment
• Light Source: 7x 15W RGBW 4-in-1 LED (LED Engin)
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 173W max. at full output
• Control
• On-Board: Battery powered full color display
• including gravity sensor
• Battery lifetime: max 30 days (full charge)
• Mode: DMX, Auto & Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 147h /Basic 7ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Dimmer speed: Smooth, fast
• Color balance: Separate RGBW adjustment
• Strobe: 0-20Hz
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Special: Pan/ Tilt, change blackout,
• User-selectable Pan & Tilt ranges,
• 540°/360°/180°, Reverse Pan / Tilt movement
• Physical
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Fixture Connection: XLR 3p Data in/out, Powercon
• in- & output
• Dimensions (WxDxH): 204 x 219 x 351 mm
• Weight: 6 kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C
• Lux @ 2m: 25200
• Beam Angle: 7/25/50° Manual adjustment
• Light Source: 7x 15W RGBW 4-in-1 LED (LED Engin)
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 173W max. at full output
• Control
• On-Board: Battery powered full color display
• including gravity sensor
• Battery lifetime: max 30 days (full charge)
• Mode: DMX, Auto & Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 147h /Basic 7ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Dimmer speed: Smooth, fast
• Color balance: Separate RGBW adjustment
• Strobe: 0-20Hz
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Special: Pan/ Tilt, change blackout,
• User-selectable Pan & Tilt ranges,
• 540°/360°/180°, Reverse Pan / Tilt movement
• Physical
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Fixture Connection: XLR 3p Data in/out, Powercon
• in- & output
• Dimensions (WxDxH): 204 x 219 x 351 mm
• Weight: 6 kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C
