• 8 Facet prism with zoom
• Color-bump possibility
• Frost filter
• High torque motors
• Battery powered menu

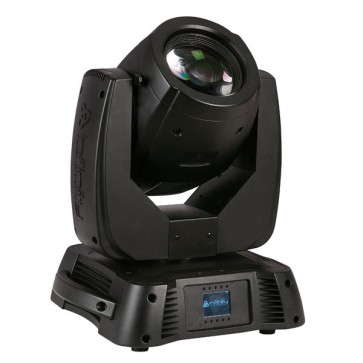

Fully packed with features for the most demanding beam-effect user the iB-5R offers you all functions you require. The Infinity iB-5R has fast movements for pan/tilt, gobo and color changes, and offers 17 metal gobos in combination with 14 vivid colors. Besides the main difference of the light source with the iB-2R there is one more signification difference in features. The iB-5R is equipped with a zoom function on the 8 facet prism, this feature is not available on the iB-2R. It comes complete with a Osram Sirius 230W lamp (5R) (included).
• Color-bump possibility
• Frost filter
• High torque motors
• Battery powered menu
Fully packed with features for the most demanding beam-effect user the iB-5R offers you all functions you require. The Infinity iB-5R has fast movements for pan/tilt, gobo and color changes, and offers 17 metal gobos in combination with 14 vivid colors. Besides the main difference of the light source with the iB-2R there is one more signification difference in features. The iB-5R is equipped with a zoom function on the 8 facet prism, this feature is not available on the iB-2R. It comes complete with a Osram Sirius 230W lamp (5R) (included).
Specifikationer
Detaljer
• Lamp
• Light Source: Osram Sirius HRI 230W (5R)
• Lamp socket: E20.6
• Color temp.: 8000K
• Beam angle: 1- 3,8°
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 385W
• Control
• On-Board: Battery powered full color display
• including gravity sensor
• Battery lifetime: max 30 days (full charge)
• Mode: DMX, Auto & Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 18ch /Basic 15ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100% Mechanical
• Shutter: 0-20Hz
• Focus: Motorized
• Prism 1: 8-facet rotating prism
• Frost: Yes
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Special: Pan/ Tilt, Color,Gobo change
• blackout,User-selectable Pan & Tilt ranges,
• 540°/360°/180°/90°, Reverse Pan / Tilt movement
• Gobos & Colors
• Gobowheel: 17 Metal gobos
• Gobo functions: Gobo-flow effect,Gobo shake
• Colors: 14 dichroic-filters + white
• Color functions: Split colors, Rainbow-flow effect
• Physical
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Screws: Quick lock
• Fixture Connection: XLR 3&5p Data in/out, Powercon
• input
• Dimensions (WxDxH): 346 x 417 x 490 mm
• Weight: 20,5 kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C
• Minimum distance objects: 12m
• Light Source: Osram Sirius HRI 230W (5R)
• Lamp socket: E20.6
• Color temp.: 8000K
• Beam angle: 1- 3,8°
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 385W
• Control
• On-Board: Battery powered full color display
• including gravity sensor
• Battery lifetime: max 30 days (full charge)
• Mode: DMX, Auto & Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 18ch /Basic 15ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100% Mechanical
• Shutter: 0-20Hz
• Focus: Motorized
• Prism 1: 8-facet rotating prism
• Frost: Yes
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Special: Pan/ Tilt, Color,Gobo change
• blackout,User-selectable Pan & Tilt ranges,
• 540°/360°/180°/90°, Reverse Pan / Tilt movement
• Gobos & Colors
• Gobowheel: 17 Metal gobos
• Gobo functions: Gobo-flow effect,Gobo shake
• Colors: 14 dichroic-filters + white
• Color functions: Split colors, Rainbow-flow effect
• Physical
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Screws: Quick lock
• Fixture Connection: XLR 3&5p Data in/out, Powercon
• input
• Dimensions (WxDxH): 346 x 417 x 490 mm
• Weight: 20,5 kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C
• Minimum distance objects: 12m
