UDGÅET Kontakt os for lignende produkter
Leverandør beskrivelse:
• DMX control
• Temp controlled fan
• 14° - 22° Zoom range
• Framing shutters
• Accepts round & square gobos

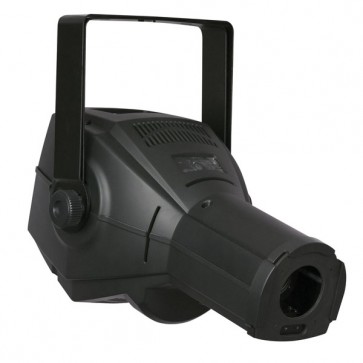

The Showtec imagespot 75W is a professional LED gobo projector with DMX control. It has a zoom range from 14°-22° which is easy to set and focus with the adjustable optics. Together with the framing shutters it is possible to precisely illuminate your desired object without unwanted stray light. It has a smooth dimming curve and 8 dichros with split function to create an extra dimension to your gobo projection. It can be controlled by 4 DMX channels or used stand alone and set with the internal menu. The gobo slot accepts standard or personalized round and square shaped gobos.
Leverandør beskrivelse:
• DMX control
• Temp controlled fan
• 14° - 22° Zoom range
• Framing shutters
• Accepts round & square gobos
The Showtec imagespot 75W is a professional LED gobo projector with DMX control. It has a zoom range from 14°-22° which is easy to set and focus with the adjustable optics. Together with the framing shutters it is possible to precisely illuminate your desired object without unwanted stray light. It has a smooth dimming curve and 8 dichros with split function to create an extra dimension to your gobo projection. It can be controlled by 4 DMX channels or used stand alone and set with the internal menu. The gobo slot accepts standard or personalized round and square shaped gobos.
Specifikationer
Detaljer
• Output
• Lux@2m 14°: 8790
• Lux@2m 22°: 3680
• LED Source: 1x 75W
• Electrical
• Input Voltage: 100~240VAC...50/60Hz
• Power consumption: 115W @FO
• Control
• On-Board: Display for settings & manual control
• Control Protocol: DMX512
• Control Personality: 4Ch
• Optical system
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Zoom: Manual 14° - 24°
• Gobos & Colors
• Inner Gobo size: 18 mm
• Outer Gobo size: 40mm
• Max Gobo thickness: 1mm
• Colors: 8 dichroic-filters + white
• Color functions: Split colors, Rainbow-flow effect
• Physical
• Fixture Connection: XLR Data in/out, IEC Power in
• Dimensions (WxDxH): 210 x 225 x 340 mm
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Power connections: IEC in/out (max 14 links)
• Data connections: XLR 3&5p in/output
• Cooling: Forced Cooling (Fan)
• Dimensions (LxWxH): 385 x 260 x 285 mm
• Weight: 4,5kg
• Certification and Safety
• IP Rating: IP-20
• Certification: CE
• Max. ambient Temp.: 40°C
• Lux@2m 14°: 8790
• Lux@2m 22°: 3680
• LED Source: 1x 75W
• Electrical
• Input Voltage: 100~240VAC...50/60Hz
• Power consumption: 115W @FO
• Control
• On-Board: Display for settings & manual control
• Control Protocol: DMX512
• Control Personality: 4Ch
• Optical system
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Zoom: Manual 14° - 24°
• Gobos & Colors
• Inner Gobo size: 18 mm
• Outer Gobo size: 40mm
• Max Gobo thickness: 1mm
• Colors: 8 dichroic-filters + white
• Color functions: Split colors, Rainbow-flow effect
• Physical
• Fixture Connection: XLR Data in/out, IEC Power in
• Dimensions (WxDxH): 210 x 225 x 340 mm
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Power connections: IEC in/out (max 14 links)
• Data connections: XLR 3&5p in/output
• Cooling: Forced Cooling (Fan)
• Dimensions (LxWxH): 385 x 260 x 285 mm
• Weight: 4,5kg
• Certification and Safety
• IP Rating: IP-20
• Certification: CE
• Max. ambient Temp.: 40°C
