• Wide zoom range
• RGBWA-UV-Lime colormixing
• WDMX
• IP-54 Protection Rate

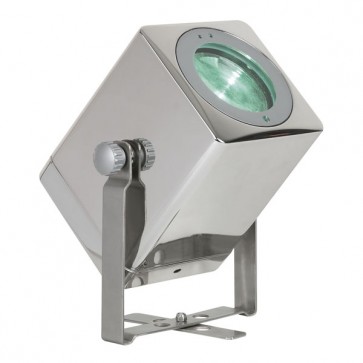

The Eventspot 60 Q7 is the smallest member of the Eventspot series. Although it has a small size its features are great. The Eventspot 60 Q7 is equipped with one 7-in-1 LED's offering an extremely wide color palette. The combination of the Red, Green, Blue, White, Amber, UV and Lime colors allows you to make hardly any color tone. The Eventspot 60 Q7 has a manual zoom which can be adjusted between 4.5° and 45°. With a weight of just 1.2 Kg and its compact footprint at the size of a milk can it can be used in hardly any circumstance either venue.
• RGBWA-UV-Lime colormixing
• WDMX
• IP-54 Protection Rate
The Eventspot 60 Q7 is the smallest member of the Eventspot series. Although it has a small size its features are great. The Eventspot 60 Q7 is equipped with one 7-in-1 LED's offering an extremely wide color palette. The combination of the Red, Green, Blue, White, Amber, UV and Lime colors allows you to make hardly any color tone. The Eventspot 60 Q7 has a manual zoom which can be adjusted between 4.5° and 45°. With a weight of just 1.2 Kg and its compact footprint at the size of a milk can it can be used in hardly any circumstance either venue.
Specifikationer
Detaljer
• Lightsource: 7 LED (RGBWA-UV-Lime)
• Drive current: 700mA
• Beam Angle: 4,5° to 45°
• Field Angle: 8° to 55°
• Input voltage: 24V DC (Dedicated adaptor)
• Power: 20 (Max)
• Runtime: 6 hrs at full RGBWA on
• Charging Cycle: 6 hrs (LED blackout when charging)
• Output (4,5°): 1400 Lux @ 2 meter
• Output (45°): 68 lux @ 2 meter
• Dimmer: 0-100%
• Strobe: 0-25Hz
• Control protocol: DMX-512
• Control personality: HSiC, SSP, TR16, TOUR
• DMX Channels: 7, 10, 13 or 20
• Dimensions: 104 x 104 x 147 mm (without bracket)
• Weight: 1,2Kg
• Housing: Plastic extrusion
• Colour: Black either Polished
• Fixture connection: 24VDC connection
• Cooling: Convection
• Operating temperature: -20°C - 45°C
• Drive current: 700mA
• Beam Angle: 4,5° to 45°
• Field Angle: 8° to 55°
• Input voltage: 24V DC (Dedicated adaptor)
• Power: 20 (Max)
• Runtime: 6 hrs at full RGBWA on
• Charging Cycle: 6 hrs (LED blackout when charging)
• Output (4,5°): 1400 Lux @ 2 meter
• Output (45°): 68 lux @ 2 meter
• Dimmer: 0-100%
• Strobe: 0-25Hz
• Control protocol: DMX-512
• Control personality: HSiC, SSP, TR16, TOUR
• DMX Channels: 7, 10, 13 or 20
• Dimensions: 104 x 104 x 147 mm (without bracket)
• Weight: 1,2Kg
• Housing: Plastic extrusion
• Colour: Black either Polished
• Fixture connection: 24VDC connection
• Cooling: Convection
• Operating temperature: -20°C - 45°C
