• Control up to 16 strips
• 4 outputs
• DMX512, Artnet, Klingnet
• Easy daisy chain

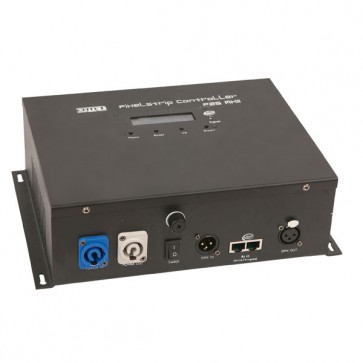

The Pixel strip controller MKII is necessary to give power and data to the Pixelstrip MKII. It's a dedicated controller and the strips cannot be controlled without it. The controller has a Klingnet in- and output RJ-45 for easy daisy chaining your klingnet setup. It has 4x RJ-45 outputs. Each output can be set for 1 - 4 strips which counts a total of 16 strips for one controller. The controller has DMX, Klingnet and Artnet. Klingnet and Artnet to use for full pixelcontrol and DMX to control the built in programs. The 2x18 character display makes it easy to set network and fixture settings.
• 4 outputs
• DMX512, Artnet, Klingnet
• Easy daisy chain
The Pixel strip controller MKII is necessary to give power and data to the Pixelstrip MKII. It's a dedicated controller and the strips cannot be controlled without it. The controller has a Klingnet in- and output RJ-45 for easy daisy chaining your klingnet setup. It has 4x RJ-45 outputs. Each output can be set for 1 - 4 strips which counts a total of 16 strips for one controller. The controller has DMX, Klingnet and Artnet. Klingnet and Artnet to use for full pixelcontrol and DMX to control the built in programs. The 2x18 character display makes it easy to set network and fixture settings.
Specifikationer
Detaljer
• Control
• Control Protocol: DMX512, Artnet, Klingnet
• DMX channels: DMX512 8ch / Artnet Separate Pixel
• Control 1920ch (16 strip setup)
• Built-in programs: 30 (can be selected over
• DMX512)
• Strip setup: 1 - 4pcs each output
• Electrical
• Power Supply: 100-240 VAC, 50/60Hz
• Power Consumption: 400W Max
• Physical
• Dimensions: 290 x 200 x 86mm
• Weight: 4,8Kg
• Housing: Die-cast aluminium, metal bracket
• Color: Black
• Power Connectors: Blue/White Power connector
• Klingnet Connections: RJ-45 in-&output
• Max Controller/strip lenght: 10m
• DMX Connections: 3p XLR in-&output
• Outputs: 4x RJ-45
• Cooling: Convection
• Safety
• Operation temperature: -5~40°C
• Protection: IP-20
• Control Protocol: DMX512, Artnet, Klingnet
• DMX channels: DMX512 8ch / Artnet Separate Pixel
• Control 1920ch (16 strip setup)
• Built-in programs: 30 (can be selected over
• DMX512)
• Strip setup: 1 - 4pcs each output
• Electrical
• Power Supply: 100-240 VAC, 50/60Hz
• Power Consumption: 400W Max
• Physical
• Dimensions: 290 x 200 x 86mm
• Weight: 4,8Kg
• Housing: Die-cast aluminium, metal bracket
• Color: Black
• Power Connectors: Blue/White Power connector
• Klingnet Connections: RJ-45 in-&output
• Max Controller/strip lenght: 10m
• DMX Connections: 3p XLR in-&output
• Outputs: 4x RJ-45
• Cooling: Convection
• Safety
• Operation temperature: -5~40°C
• Protection: IP-20
