• Udendørs LED lampe m. roterbart hoved
• Ialt 90 stk. 3W dioder- ialt 270W
• Antal dioder: 22 x rød, 22 x grøn, 22 x blå,
12 x hvid (6000Kelvin) og 12 x amber
• Vandtæt: IP67 base - IP66 lampehoveder
• DMX 3,4,5,6,7,10 eller 17 kanaler
• Spredning: 30 grader - IP67 stik
• Output 9000 lumen / 29000 lux @ 2m
• Mål 784 x 252 x 310 mm (BxDxH) - Vægt 24 kg
Kaftig LED lampe til arkitektonisk belysning. Typisk belysning af bygninger, skulpturer og andet hvor det perfekte farveskift skal opnås.
Absolut servicefri, da lampehuset er lukket op levetiden på lyskilderne typisk er 50.000 timer - altså minimum 25-30 års brug.
Mulighed for justering af farvetempraturen via DMX.
Leverandør beskrivelse:
• High Lightoutput
• IP-67 rated
• RGBWA colormixing
• Including flightcase
• Quicklock adaptors for easy truss mounting
• Low powerconsumption
• Roadproof design

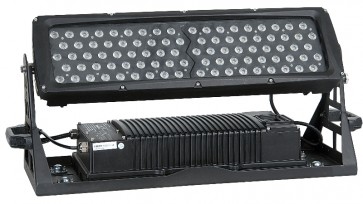

The Citypainter 9000 is an extremely bright LED based fixture, powerful enough to illuminate large architectrural facades or canvas entire stage areas. The Citypainter 9000 utilizes the extremes of cutting edge LED technology and its rugged design allows installation in any environment. With an output of 9000 Lumen and maximum projection distance of 150m this powerful fixture is unique for entertainment or architectural applications of any scale.
• Ialt 90 stk. 3W dioder- ialt 270W
• Antal dioder: 22 x rød, 22 x grøn, 22 x blå,
12 x hvid (6000Kelvin) og 12 x amber
• Vandtæt: IP67 base - IP66 lampehoveder
• DMX 3,4,5,6,7,10 eller 17 kanaler
• Spredning: 30 grader - IP67 stik
• Output 9000 lumen / 29000 lux @ 2m
• Mål 784 x 252 x 310 mm (BxDxH) - Vægt 24 kg
Kaftig LED lampe til arkitektonisk belysning. Typisk belysning af bygninger, skulpturer og andet hvor det perfekte farveskift skal opnås.
Absolut servicefri, da lampehuset er lukket op levetiden på lyskilderne typisk er 50.000 timer - altså minimum 25-30 års brug.
Mulighed for justering af farvetempraturen via DMX.
Leverandør beskrivelse:
• High Lightoutput
• IP-67 rated
• RGBWA colormixing
• Including flightcase
• Quicklock adaptors for easy truss mounting
• Low powerconsumption
• Roadproof design
The Citypainter 9000 is an extremely bright LED based fixture, powerful enough to illuminate large architectrural facades or canvas entire stage areas. The Citypainter 9000 utilizes the extremes of cutting edge LED technology and its rugged design allows installation in any environment. With an output of 9000 Lumen and maximum projection distance of 150m this powerful fixture is unique for entertainment or architectural applications of any scale.
Specifikationer
Detaljer
• Output
• Lumens: 9000+
• Lux (@2m): 29000+
• Efficiency: 33 lm/W
• Max projectiondistance: 150m
• LED Quantity: 22x Red, 22x Green, 22x Blue,12x
• White (6000K), 12x Amber
• Driver current: 700/1000mA
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam Angle: 30 degrees
• Control
• On Board: Display for easy Set Up
• Options: DMX512, Auto, Manual
• DMX personality: 3, 4, 5, 6, 7, 10, 17 Channel
• Electrical
• Input Voltage: 100~240VAC...50/60Hz
• Power consumption: 300W max @FO
• Physical
• Dimensions (LxWxH): 784 x 252 x 310mm
• Weight: 24 kg
• Fixture connection: Dedicated IP67 power and data
• connectors
• IP Rating: IP-67 (with LED display cover
• installed)
• Cooling: Convection
• Lumens: 9000+
• Lux (@2m): 29000+
• Efficiency: 33 lm/W
• Max projectiondistance: 150m
• LED Quantity: 22x Red, 22x Green, 22x Blue,12x
• White (6000K), 12x Amber
• Driver current: 700/1000mA
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam Angle: 30 degrees
• Control
• On Board: Display for easy Set Up
• Options: DMX512, Auto, Manual
• DMX personality: 3, 4, 5, 6, 7, 10, 17 Channel
• Electrical
• Input Voltage: 100~240VAC...50/60Hz
• Power consumption: 300W max @FO
• Physical
• Dimensions (LxWxH): 784 x 252 x 310mm
• Weight: 24 kg
• Fixture connection: Dedicated IP67 power and data
• connectors
• IP Rating: IP-67 (with LED display cover
• installed)
• Cooling: Convection
