Ny

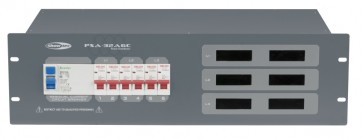

PSA-32A6C 400V/32A CEEdistribution Amp-& Voltmeter

Varenr: 50662
• Distribution af 400V/32A
• Automatsikringer på hver fase
• Output er CEE stik
• Dimensioner 483x135x245mm, 9,5kg
• IP20
Læs mere om Showtec
3.849,00 DKK



Inkl. moms
  • På lagerPå lager

Kan ses i vores butik

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Distribution af 400V/32A
• Automatsikringer på hver fase
• Output er CEE stik
• Dimensioner 483x135x245mm, 9,5kg
• IP20

Leverandør beskrivelse:
• Digital voltage & amperage-monitoring per phase.


• 16A C-type automatic fuses per output.
• 19 inch Rackmount
Bring safety on stage! Power is the most important chain for a successful show on any stage. Showtec developed, together with leading rental companies, the power distributors that will keep your power and equipment save. The PSA series give you real-time voltage and amperage information during your show. Now you can monitor your setup and make sure that the power is correctly distributed at all times.

Specifikationer

Detaljer

• Input: 1,5m H07RN-F 5G6 cable + CEE male 3P+N+PE,
• 400VAC, 50/60Hz
• Output: 6x CEE female 1P+N+PE, 230VAC, 50/60Hz
• RCCB (1pcs)
• Rating: 40A
• Sensitivity: 30mA
• Class: A
• Poles: 3P+N
• Breaking Capacity: 6KA
• MCB (6pcs)
• Rated Current: 16A
• Tripping Curve: C-type
• Poles: 1P
• Breaking Capacity: 6KA
• Physical
• Color: Dark Grey
• Housing: Powder coated Metal
• Dimensions: 483 x 135 x 245 mm
• IP Rating: IP20
• Operating Temp: -5 ~ 40°C
• Weight: 9,50 Kg

Download

50662_MANUAL_GB_V2.pdf
