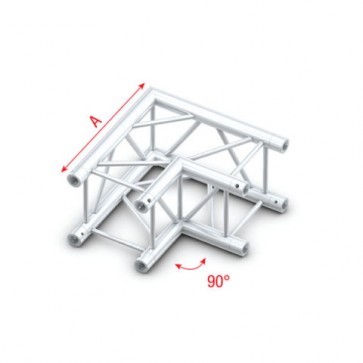

PQ30 bro firkant 30x30 cm - 90 grader hjørne

• Mål: 50 x 50 cm, 90° (A=50 cm)
• Leveres incl. 4 stk koniske samleæg,
4 stk konisk pin og 4 stk sikkerhedsklips
• Rør-diameter: 50mm
• Rørafstand: 289mm (kant-kant)
• Rørafstand: 239mm (center-center)
• Godstykkelse: 2mm
• TÜV certificeret

Leverandør beskrivelse:
The Showtec PRO-30 truss is made of 50mm alu-pipe with a thickness of 2mm and 16mm braces. This is the most used construction system for discotheques, stages, theatres and suitable for many more applications. The PRO-30 is available in following models: 2 point step system (S), 3 point triangle system (T) and 4 points square system (Q). The system elements are joined with help of conical connection coupling. Showtec offers 3 different coupling systems with different compatibility shown in the below overview. All Showtec Pro-30 truss systems are TÜV certificated. To recognize your truss system you can check the diameter at the pin insert part of your spigot.
• P Truss Compatible with standard Milos truss
systems (Ø 29,8mm)
• F Truss Compatible with Prolyte truss systems (Ø
27,8mm)
• G Truss Compatible with Global & Euro truss
systems (Ø 29,0mm) Each PRO-30 truss item contains connector sets
