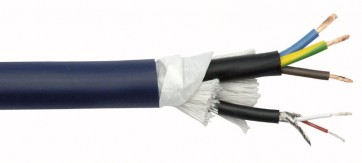

PMC-216 - 230V og signalkabel i ét - pr. mtr.

Varenr: D9481
• 230V og line/DMX kabel i ét
• Seperate kabler med én yderkappe
• 3 x 1,5mm
• Ø15,5 mm på yderkappe
• Højfleksibelt kabel - blå


• 500M on spool price p/m
• Conductor drains Ø mm: OFC 20 x 0,10 (NF)
& 3 x 1,5 (power)
• Conductor insulation: PE red+white
& PVC black (power)
• Conductor insulation Ø: 1,3 mm (NF)
& 3,7 mm (power)
• Filler material: paper+cotton yarn
• 1st shield: twisted tinned copper
NF 96 x 0,10
• 2nd shield: -
• Outer isolation: PVC 15mm
Conductor resistance: 80 Ohm/Km Shield resistance: 30 Ohm/Km Capacity Inner conductor: 60 pF/m Cap. Inner conduct. Shield / Inner conduct.: 78 pF/m Working temperature: -20~60 °C (min./max.) Working Voltage overflash: 30V Nom Impedance: 110 Ohm
Læs mere om DAP-Audio
69,00 DKK



Inkl. moms
  • På lagerPå lager

Kan ses i vores butik

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• 230V og line/DMX kabel i ét
• Seperate kabler med én yderkappe
• 3 x 1,5mm
• Ø15,5 mm på yderkappe
• Højfleksibelt kabel - blå


• 500M on spool price p/m
• Conductor drains Ø mm: OFC 20 x 0,10 (NF)
& 3 x 1,5 (power)
• Conductor insulation: PE red+white
& PVC black (power)
• Conductor insulation Ø: 1,3 mm (NF)
& 3,7 mm (power)
• Filler material: paper+cotton yarn
• 1st shield: twisted tinned copper
NF 96 x 0,10
• 2nd shield: -
• Outer isolation: PVC 15mm
Conductor resistance: 80 Ohm/Km Shield resistance: 30 Ohm/Km Capacity Inner conductor: 60 pF/m Cap. Inner conduct. Shield / Inner conduct.: 78 pF/m Working temperature: -20~60 °C (min./max.) Working Voltage overflash: 30V Nom Impedance: 110 Ohm

Specifikationer

Detaljer

• 500M on spool price p/m
• Conductor drains Ø mm: OFC 20 x 0,10 (NF) & 3 x
• 1,5 (power)
• Conductor insulation: PE red+white & PVC black
• (power)
• Conductor insulation Ø: 1,3 mm (NF) & 3,7 mm
• (power)
• Filler material: paper+cotton yarn
• 1st shield: twisted tinned copper NF 96 x 0,10
• 2nd shield: -
• Outer isolation: PVC 15mm, matte blue
• Conductor resistance: 80 Ohm/Km
• Shield resistance: 30 Ohm/Km
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield/Inner conduct.: 78 pF/m
• Working temperature: -20~60 °C (min./max.)
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
