• Very slim die-cast aluminium with only 8 kg lightweight frame.
• Quiet - Low heat design with no fans cooling
system
• Separated and exchangeable power and control
unit
• Patented 'One Action Locking'
• Panel Status LCD7.8

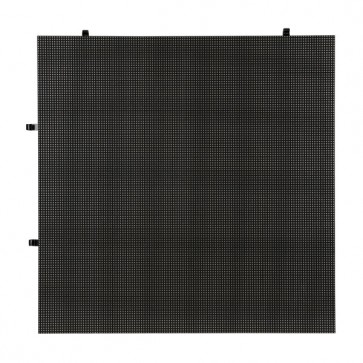

The DMT i3.9 is a HD LED screen with a pixel pitch of only 3.9mm. It combines a lightweight and modular housing with an excellent picture quality. Rigging is easy and fast by its patented 'One Action Locking'. To Ensure quick and easy maintenance the i3.9 is been build out of modular LED modules as well hot swappable power supplies and data interface. The LCD on the backside of the screen shows real time information off several statuses such as humidity, temperature, voltage and running time.
• Quiet - Low heat design with no fans cooling
system
• Separated and exchangeable power and control
unit
• Patented 'One Action Locking'
• Panel Status LCD7.8
The DMT i3.9 is a HD LED screen with a pixel pitch of only 3.9mm. It combines a lightweight and modular housing with an excellent picture quality. Rigging is easy and fast by its patented 'One Action Locking'. To Ensure quick and easy maintenance the i3.9 is been build out of modular LED modules as well hot swappable power supplies and data interface. The LCD on the backside of the screen shows real time information off several statuses such as humidity, temperature, voltage and running time.
Specifikationer
Detaljer
• LED light source: SMD2020 Black Frame
• Driver: MBI5152
• Luminance: >1500 Nits
• Transparency: 0%
• Refresh rate: >2400Hz
• Cabinet ratio: 1:1
• Resolution: 128 x 128px
• Pixel pitch: 3,91mm
• Screen mode: Real Pixel
• Viewing angle: 140° x 140°
• Control system: LINSN Led Studio
• Input voltage: 90-240V 50/60Hz
• Max Power consumption: 672W/m2
• Average Power consumption: 224W/m2
• IP Rating: IP30 (indoor use)
• Data connection: RJ45 (Neutrik Ethercon)
• Power connection: Neutrik Powercon
• Cooling: Convection
• Mechanical connection: Fastlock system
• Maximum hanging height: 10 panels
• Cabinet size: W500mm x H500mm x D78mm
• Cabinet weight: 9 kg (including link cables)
• Link cables are included (both data and power)
• Driver: MBI5152
• Luminance: >1500 Nits
• Transparency: 0%
• Refresh rate: >2400Hz
• Cabinet ratio: 1:1
• Resolution: 128 x 128px
• Pixel pitch: 3,91mm
• Screen mode: Real Pixel
• Viewing angle: 140° x 140°
• Control system: LINSN Led Studio
• Input voltage: 90-240V 50/60Hz
• Max Power consumption: 672W/m2
• Average Power consumption: 224W/m2
• IP Rating: IP30 (indoor use)
• Data connection: RJ45 (Neutrik Ethercon)
• Power connection: Neutrik Powercon
• Cooling: Convection
• Mechanical connection: Fastlock system
• Maximum hanging height: 10 panels
• Cabinet size: W500mm x H500mm x D78mm
• Cabinet weight: 9 kg (including link cables)
• Link cables are included (both data and power)
