• New LED 3535 technology
• High contrast rate because of black frame led
type
• Easily assembled screen ratios of 4:3, 8:9, 16:9
• Ideal for broadcast and rental application

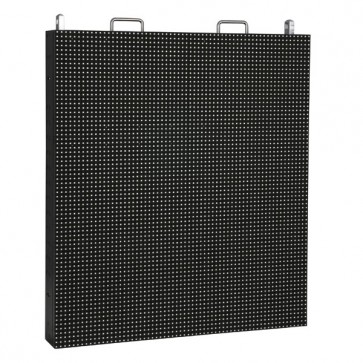

The DMT Pixelscreen P10 SMD Tour MKIII is the new type of the already successful Pixelscreen P10 SMD Tour MKII. In this new version, DMT has chosen to use the new Powercon TRUE1 connectors and led type SMD 3535 with black frame for high output and best contrast. The DMT Pixelscreen P10 SMD Tour MKIII is an ideal screen for rental use.The ergonomic and service friendly design with a sensational low weight of 22 kg for each panel improves set-up times of pixelscreens. The modular structure allows a unique ?one-minute' maintenance in case of any problem. The Pixelscreen P10 SMD Tour MKIII is one of the most silent LED screens on the market. Due to efficient design with optimal convection cooling it does not need any fans. This feature makes the Pixelscreen P10 SMD Tour MKIII very suitable for Broadcast, Rental and Theatre applications, where silence is demanded. The Pixelscreen P10 SMD Tour MKIII is ready to go on the road with the specially designed flightcase, which can hold up to 6 screens, and it's necessary cables. The cases are designed and constructed to withstand the toughest conditions on the road and they are designed to fit European Truck Measurements as they have a width of 60cm.
• High contrast rate because of black frame led
type
• Easily assembled screen ratios of 4:3, 8:9, 16:9
• Ideal for broadcast and rental application
The DMT Pixelscreen P10 SMD Tour MKIII is the new type of the already successful Pixelscreen P10 SMD Tour MKII. In this new version, DMT has chosen to use the new Powercon TRUE1 connectors and led type SMD 3535 with black frame for high output and best contrast. The DMT Pixelscreen P10 SMD Tour MKIII is an ideal screen for rental use.The ergonomic and service friendly design with a sensational low weight of 22 kg for each panel improves set-up times of pixelscreens. The modular structure allows a unique ?one-minute' maintenance in case of any problem. The Pixelscreen P10 SMD Tour MKIII is one of the most silent LED screens on the market. Due to efficient design with optimal convection cooling it does not need any fans. This feature makes the Pixelscreen P10 SMD Tour MKIII very suitable for Broadcast, Rental and Theatre applications, where silence is demanded. The Pixelscreen P10 SMD Tour MKIII is ready to go on the road with the specially designed flightcase, which can hold up to 6 screens, and it's necessary cables. The cases are designed and constructed to withstand the toughest conditions on the road and they are designed to fit European Truck Measurements as they have a width of 60cm.
Specifikationer
Detaljer
• LED light source: SMD3535 black frame
• Luminance: 5000 Nits
• Transparency: 0%
• Refresh rate: 300~1000Hz
• Resolution: 64 x 72px
• Pixel pitch: 10mm
• Screen Mode: Real Pixel
• Viewing angle (HxV): 140° x 140°
• Control system: LINSN LED Studio
• Input Voltage: 100~240VAC...50/60Hz
• Max Power Consumption: 300 Watt
• Average Power Consumption: 100 Watt
• IP Rating: IP65 (front) / IP54 (back)
• Data connection: Neutrik Ethercon
• Power connection: Neutrik TRUE1
• Cooling: Convection
• Mechanical connection: Fastlock system
• Maximum hanging height: 20 Panels
• Cabinet size: W640mm x H720 x D149 mm
• Cabinet weight: 22 Kg
• Luminance: 5000 Nits
• Transparency: 0%
• Refresh rate: 300~1000Hz
• Resolution: 64 x 72px
• Pixel pitch: 10mm
• Screen Mode: Real Pixel
• Viewing angle (HxV): 140° x 140°
• Control system: LINSN LED Studio
• Input Voltage: 100~240VAC...50/60Hz
• Max Power Consumption: 300 Watt
• Average Power Consumption: 100 Watt
• IP Rating: IP65 (front) / IP54 (back)
• Data connection: Neutrik Ethercon
• Power connection: Neutrik TRUE1
• Cooling: Convection
• Mechanical connection: Fastlock system
• Maximum hanging height: 20 Panels
• Cabinet size: W640mm x H720 x D149 mm
• Cabinet weight: 22 Kg
