Beskrivelse
Detaljer

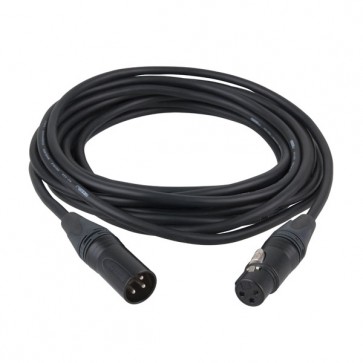

• XLR -> XLR line-, mikrofon- og datakabel
• Neutrik stik han/hun balanceret
• Dobbelt skærmet
• Højfleksibelt gummikabel
Oxygenfrit og højflexibelt kabel med Neutrik stik - altså absolut bedste kvalitet.
Leverandør beskrivelse:
For the professional user we offer the FL-72 series which is a high-end 100% double shielded balanced mic/line/data cable from exceptional quality and the original new generation of worldwide accepted Neutrik® XLR-XX connectors.
• Neutrik stik han/hun balanceret
• Dobbelt skærmet
• Højfleksibelt gummikabel
Oxygenfrit og højflexibelt kabel med Neutrik stik - altså absolut bedste kvalitet.
Leverandør beskrivelse:
For the professional user we offer the FL-72 series which is a high-end 100% double shielded balanced mic/line/data cable from exceptional quality and the original new generation of worldwide accepted Neutrik® XLR-XX connectors.
Specifikationer
Detaljer
• Connectors: Neutrik NC3MXX & NC3FXX
• Specifications Cable
• Conductor drains Ø mm: OFC 15 x 0,12
• Conductor insulation: PE red+white
• Conductor insulation: 1,5 (Ø in mm)
• 1st shield: 2 x Conductive plastic
• 2nd shield: OFC twisted 96 x 0,12
• Outer isolation: PVC black
• Outer isolation Ø: 6 mm
• Conductor resistance: 90 Ohm/Km
• Shield resistance: 25 Ohm/Km
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield / Inner conduct.: 78
• pF/m
• Working temperature min. / max.: -20~60 °C
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
• Specifications Cable
• Conductor drains Ø mm: OFC 15 x 0,12
• Conductor insulation: PE red+white
• Conductor insulation: 1,5 (Ø in mm)
• 1st shield: 2 x Conductive plastic
• 2nd shield: OFC twisted 96 x 0,12
• Outer isolation: PVC black
• Outer isolation Ø: 6 mm
• Conductor resistance: 90 Ohm/Km
• Shield resistance: 25 Ohm/Km
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield / Inner conduct.: 78
• pF/m
• Working temperature min. / max.: -20~60 °C
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
