• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact
integrity between chassis and cable connector
• Male connector's retention bar replaces plastic
design with all metal version improving pull-out force
• Larger solder contacts for easier termination

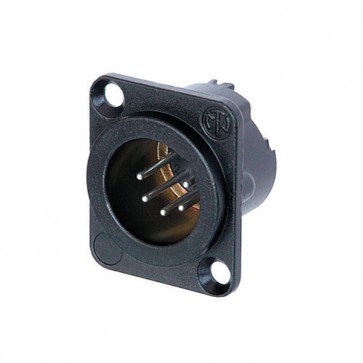

5 pole male receptacle, solder cups, black metal housing, silver contacts,
• Duplex ground contact for excellent contact
integrity between chassis and cable connector
• Male connector's retention bar replaces plastic
design with all metal version improving pull-out force
• Larger solder contacts for easier termination
5 pole male receptacle, solder cups, black metal housing, silver contacts,
Specifikationer
Detaljer
• Capacitance between contacts: ? 7 pF
• Contact resistance: ? 5 m?
• Dielectric strength: 1,5 kVdc
• Rated current per contact: 7,5 A
• Rated voltage: < 50 V
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.0 mm²
• Wiring: Solder contacts
• Locking device: Latch lock
• Chassis shape: D
• Contact resistance: ? 5 m?
• Dielectric strength: 1,5 kVdc
• Rated current per contact: 7,5 A
• Rated voltage: < 50 V
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.0 mm²
• Wiring: Solder contacts
• Locking device: Latch lock
• Chassis shape: D
