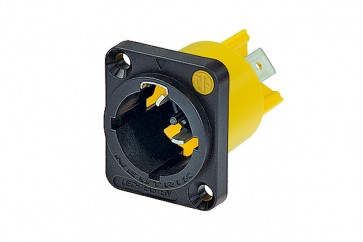

Neutrik PowerCON TRUE1 inlet chassis

Varenr: NAC3MPX
• Lockable 16 A single phase connector
• Extremely robust and reliable
• Easy and reliable twist lock system
• IP65 - water resistant when sealing cover is
mounted and mated with ready-made cord sets The PowerCon True1 is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCon True1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Læs mere om Showtec
41,00 DKK



Inkl. moms
  • På lagerPå lager

Kan ses i vores butik

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Lockable 16 A single phase connector
• Extremely robust and reliable
• Easy and reliable twist lock system
• IP65 - water resistant when sealing cover is
mounted and mated with ready-made cord sets The PowerCon True1 is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCon True1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Specifikationer

Detaljer

• Title: NAC3MPX
• Gender: male
• Contact resistance: ? 3 m? (inner)
• Number of electronical contacts: 2 + PE
• Rated current per contact: 16A max
• Rated maximum voltage: 250 V ac
• Wiresize: 2,5 mm2
• Temperature range: -30 °C to +80 °C
• Optional Accessories: Sealing Cover SCNAC-MPX
