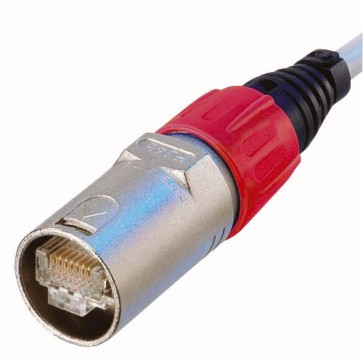

RJ45 cable carrier consisting of shell, fixing disk, chuck, bush and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. For pre-assembled RJ45 plugs. Standard bushing colour is black, EFK305BB. 9 different colours available by request only.
Specifikationer
Detaljer
• Electrical
• Specs depend on type of RJ45 plugs used.
• Cable O.D. range: max. 8 mm / 0.315"
• Mechanical
• Life time: > 1000 mating cycles
• Materials
• Housing: ZnAl4Cu1, gal Ni
• Strain relief clamp: POM
• Bushing: PA 6 15% GR
• Boot: PA 6
• Temperature range: -30°C to +80°C
• Flammability: UL94-V0
• Specs depend on type of RJ45 plugs used.
• Cable O.D. range: max. 8 mm / 0.315"
• Mechanical
• Life time: > 1000 mating cycles
• Materials
• Housing: ZnAl4Cu1, gal Ni
• Strain relief clamp: POM
• Bushing: PA 6 15% GR
• Boot: PA 6
• Temperature range: -30°C to +80°C
• Flammability: UL94-V0
