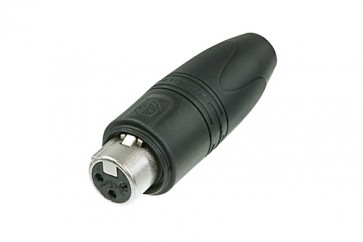

Neutrik 3P Female XLR 'Heavy Duty' IP connector

• "Heavy duty" cable connector for outdoor use
• Rubber sealing jacket protects against water
ingress and mechanical shock
• Rugged zinc diecast shell, long-lasting and
dependable
• Internal thread on shell is well protected
against any damage

The Neutrik XX-HDD Series is a "heavy duty" XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 65 by mating with related XX-HD cable connector or MPR-HD chassis connector. Gold contacts are standard.

Electrical: Capacitance between contacts ? 4 pF Contact resistance ? 3 m? (inner) Rated current per contact 16 A Rated voltage 50 V Mechanical: Cabel O.D. 3,5 - 8,0 mm Wiresize max. 2.5 mm² Wiresize max. 14 AWG Wiring Solder contacts Locking device Latch lock Material: Boot Polyurethan Contacts Brass Insert Polyamide Shell Zinc diecast Shell plating Nickel Strain relief Polyacetal Environmental: Flammability UL 94 HB Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C

Leverandør beskrivelse:
• "Heavy duty" cable connector for outdoor use
• Rubber sealing jacket protects against water
ingress and mechanical shock
• Rugged zinc diecast shell, long-lasting and
dependable
• Internal thread on shell is well protected
against any damage

The Neutrik XX-HDD Series is a "heavy duty" XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 65 by mating with related XX-HD cable connector or MPR-HD chassis connector. Gold contacts are standard.
