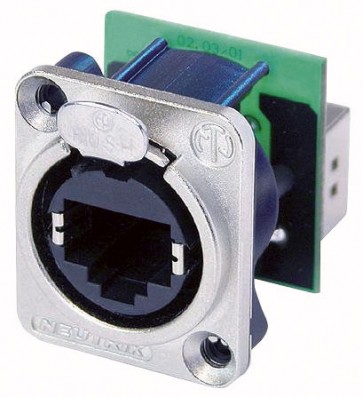

Neutrik RJ45 LAN D-chassis - blank - NE8FDP-B

• Electrical
• Frequency bandwidth: 1 - 100 MHz
• Number of contacts: 8
• Rated current: 1.5 A
• Dielectric strength: 1000 V ac rms
• Contact resistance: < 10 m
• Insulation resistance: > 500 M
• Category 5e
•
• Mechanical
• Lifetime: 1000 mating cycles
• Retention method: latch lock
• Panel thickness: max. 4 mm [0.12"]
•
• Materials
• Housing: PBTP 15% GR
• D-flange: Zinc die cast (ZnAl4Cu1, black chrome)
• Strain relief clamp: Ck67, Ni plated
• Contacts: Bronze CuSn6
• Contact surface: Au (gal 0.2 µm over Ni plating)
• Temperature range: -30°C to +80°C
• Flammability: UL94-V0
