Beskrivelse
Detaljer

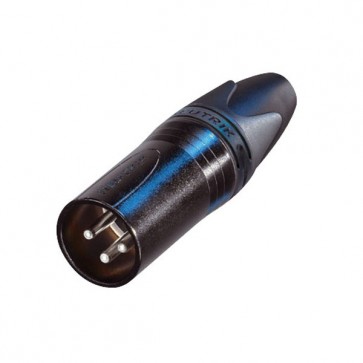

• Male connector with improved locking recess without "window", more stringent housing increases durability
• Rugged zinc diecast shell, longl-asting and
dependable
• Internal thread on shell is well protected
against any damage The next generation of the worldwide accepted standard of XLR cable connectors
• Rugged zinc diecast shell, longl-asting and
dependable
• Internal thread on shell is well protected
against any damage The next generation of the worldwide accepted standard of XLR cable connectors
Specifikationer
Detaljer
• Electrical:
• Capacitance between contacts ? 4 pF
• Contact resistance ? 3 m? (inner)
• Rated current per contact 16 A
• Rated voltage 50 V
• Mechanical:
• Cabel O.D. 3,5 - 8,0 mm
• Wiresize max. 2.5 mm²
• Wiresize max. 14 AWG
• Wiring Solder contacts
• Locking device Latch lock
• Material:
• Boot Polyurethan
• Contacts Brass
• Insert Polyamide
• Shell Zinc diecast
• Shell plating Nickel
• Strain relief Polyacetal
• Environmental:
• Flammability UL 94 HB
• Standard compliance IEC 61076-2-103
• Protection class IP 40
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
• Capacitance between contacts ? 4 pF
• Contact resistance ? 3 m? (inner)
• Rated current per contact 16 A
• Rated voltage 50 V
• Mechanical:
• Cabel O.D. 3,5 - 8,0 mm
• Wiresize max. 2.5 mm²
• Wiresize max. 14 AWG
• Wiring Solder contacts
• Locking device Latch lock
• Material:
• Boot Polyurethan
• Contacts Brass
• Insert Polyamide
• Shell Zinc diecast
• Shell plating Nickel
• Strain relief Polyacetal
• Environmental:
• Flammability UL 94 HB
• Standard compliance IEC 61076-2-103
• Protection class IP 40
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
