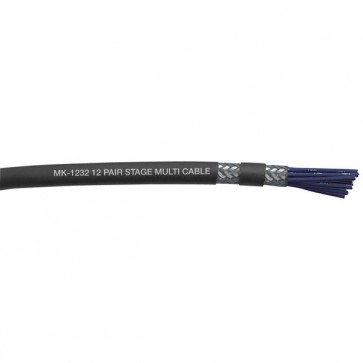

The DAP audio Pro-Core Multicable: professional features and top-notch materials have become a standard in this productline. But the DAP-engineers knew there was some room left for improvements: the Pro-core line is now also AES-EBU compliant. Designed for tough -on-the-road" use, so extremely well suited for rental companies, and the professional demanding -power-user" who needs a good solid multicore that is also sufficiently shielded. Features: tough but flexible, double shielded for more protection and less noise, good for outdoor use, even under hard circumstances and in all weatherconditions. 1. Masterjacket: Dark blue flexible roadproof PVC 2. Mastershield: Braided tinned copper 3. Pairjacket: Numbered dark-blue PVC 3 mmØ 4. Pairshield: Silvercoatet Alufoil 5. Conductor insulation: Polyethelene red and white 1mmØ 6. Inner conductor: Oxigene free copper 99,997 OFC 7. Earth drainwire: Tinned copper
• Double shielded multicable
• colour coded
• Tough, roadproof quality
• Each pair OFC-copper shielded
Each pair: alu-foil / drainwire-shielded and total: tinned copper braided shield. Min. orderquantuty: 1m. Max. on drum: 500m.
• Double shielded multicable
• colour coded
• Tough, roadproof quality
• Each pair OFC-copper shielded
Each pair: alu-foil / drainwire-shielded and total: tinned copper braided shield. Min. orderquantuty: 1m. Max. on drum: 500m.
Specifikationer
Detaljer
• Price p. m.
• Max. 500m on spool
• Number of pairs: 12
• Conductor insulation Ø in mm: PE, red+white, 1,0
• Pair jacket Ø in mm: PVC blue, (numbered), 3,0
• Pair shield: Alufoil + tinned drainwire
• Master jacket Ø in mm: PVC, black, 16,5
• Master Shield: braided tinned copper
• Minimal bending radius: ?15 mm
• Weight (kg/100 m): 38
• Max. 500m on spool
• Number of pairs: 12
• Conductor insulation Ø in mm: PE, red+white, 1,0
• Pair jacket Ø in mm: PVC blue, (numbered), 3,0
• Pair shield: Alufoil + tinned drainwire
• Master jacket Ø in mm: PVC, black, 16,5
• Master Shield: braided tinned copper
• Minimal bending radius: ?15 mm
• Weight (kg/100 m): 38
