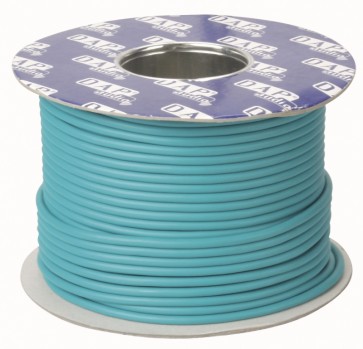

MC-226G Line/mikrofon kabel grøn - 100 mtr.

• Conductor drains Ø mm: OFC 15 x 0,12
• Conductor insulation: PE red+white
• Conductor insulation Ø in mm: 1,5
• Filler material: -
• 1st shield: 2 x Conductive plastic
• 2nd shield: OFC twisted 96 x 0,12
• Outer isolation: PVC black, blue, red, yellow,
• green
• Outer isolation Ø in mm: 6
• Conductor resistance: 90 Ohm/Km
• Shield resistance: 25 Ohm/Km
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield/Inner conduct.: 78 pF/m
• Working temperature: -20~60 °C (min. / max.)
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
