• Easy setup and control
• Two DVI outputs
• Built-in LINSN sender card (model 802)

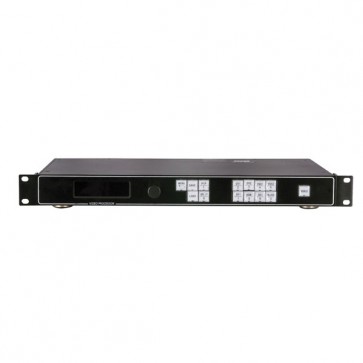

The LS-125 videoprocessor is the new version of our popular LS-120. The new design has added the bigger buttons and a new on board media player. It's now possible to make a schedule playlist for a USB stick containing the video files. The LS-125 comes with two USB ports, one for playing images and one for playing video files. With the new rotary it makes it very easy and fast to change values from scaling, positioning, menu selections etc. The built in sender card, model 802, makes the LS-125 plug and play for all our led screens.
• Two DVI outputs
• Built-in LINSN sender card (model 802)
The LS-125 videoprocessor is the new version of our popular LS-120. The new design has added the bigger buttons and a new on board media player. It's now possible to make a schedule playlist for a USB stick containing the video files. The LS-125 comes with two USB ports, one for playing images and one for playing video files. With the new rotary it makes it very easy and fast to change values from scaling, positioning, menu selections etc. The built in sender card, model 802, makes the LS-125 plug and play for all our led screens.
Specifikationer
Detaljer
• Sendercard Type: 802
• Power supply: AC 85-264V 50/60 Hz 2.1A
• Power Consumption: 465W
• Inputs:
• 1 x VGA DB15 Socket VGA-UXGA
• Supported Resolutions:
• 1024x768x60, 800x600x60, 640x480x60, 1280x720x60,
• 1280x800x60, 1280x960x60, 1280x1024x60,
• 1440x900x60, 1400x1050x60, 1600x1200x60,
• 1680x1050x60, 1920x1080x60, 1366x768x60
• 1 x DVI Standard DVI-I socket
• Supported Resolutions:
• SMPTE: 625/25 PAL, 525/29.97 NTSC, 625/50p PAL,
• 525/59.94p NTSC
• 1080i50,1080i59.94/60,720p50,720p59.94/60
• VESA: 800x600x60Hz, 1024x768x60Hz, 1280x768x60Hz,
• 1280x1024x60Hz, 1600x1200x60Hz, 1920x1080x60Hz,
• 1920x1080x50Hz
• 2 x USB
• 1 USB port is used to play only video content and
• the other only for images.
• Outputs:
• 2 x DVI Output Standard DVI-I Socket
• Supported Resolutions:
• VESA: 800x600x60Hz, 1024x768x60Hz, 1024x768x75Hz,
• 1280x720x60Hz, 1280x720x50Hz, 1280x768x60Hz,
• 1280x800x60Hz, 1280x1024x60Hz, 1360x768x60Hz,
• 1366x768x60Hz, 1400x1050x60Hz, 1440x900x60Hz,
• 1600x1200x60Hz, 1680x1050x60Hz, 1920x1080x60Hz,
• 1920x1080x50Hz, 1920x1200x60Hz, 2048x1152x60Hz,
• 2560x812x60Hz, 2560x1152x50Hz.
• 1 x VGA DB15 Socket
• Supported Resolutions:
• VESA: 800x600x60Hz, 1024x768x60Hz, 1024x768x75Hz,
• 1280x720x60Hz, 1280x720x50Hz, 1280x768x60Hz,
• 1280x800x60Hz, 1280x1024x60Hz, 1360x768x60Hz,
• 1366x768x60Hz, 1400x1050x60Hz, 1440x900x60Hz,
• 1600x1200x60Hz, 1680x1050x60Hz, 1920x1080x60Hz,
• 1920x1080x50Hz, 1920x1200x60Hz, 2048x1152x60Hz,
• 2560x812x60Hz, 2560x1152x50Hz.
• Control: Remote RS232, USB control
• Source Switch: support every signal alpha key
• operation
• PIP: Support PIP and PBP for any channel
• AV Sync: supported
• Working Environment: 0°C~45°C
• Humidity: 10% to 90%
• Dimensions: 480 x 268 x 145
• Weight: 2,60 kg
• Sender Card supports following resolutions
• 60HZ output: TS802(D) support capability
• No Max support Note
• Width Height Total
• 1 2048 320 655360 1 cable
• 3 1984 320 634880 1 cable
• 4 1920 320 614400 1 cable
• 5 1856 352 653312 1 cable
• 6 1792 352 630784 1 cable
• 7 1728 352 608256 1 cable
• 8 1664 384 638976 1 cable
• 9 1600 384 614400 1 cable
• 10 1536 416 638976 1 cable
• 11 1472 416 612352 1 cable
• 12 1408 448 630784 1 cable
• 13 1344 480 645120 1 cable
• 14 1280 512 655360 1 cable
• 15 1216 512 622592 1 cable
• 16 1152 512 589824 1 cable
• 17 1088 512 557056 1 cable
• 18 1024 640 655360 1 cable
• 19 896 640 573440 1 cable
• 20 832 640 532480 1 cable
• 21 768 640 491520 1 cable
• 22 704 640 450560 1 cable
• 23 640 640 409600 1 cable
• 60HZ output: TS802(D) support capability
• No Max support Note
• Width Height Total
• 1 2048 640 1310720 2 cables
• 3 1920 672 1290240 2 cables
• 4 1856 704 1306624 2 cables
• 5 1792 720 1290240 2 cables
• 6 1728 736 1271808 2 cables
• 7 1664 768 1277952 2 cables
• 8 1600 800 1280000 2 cables
• 9 1536 832 1277952 2 cables
• 10 1472 880 1295360 2 cables
• 11 1408 928 1306624 2 cables
• 12 1344 960 1290240 2 cables
• 13 1280 1024 1310720 2 cables
• 14 1216 1024 1245184 2 cables
• 15 1152 1024 1179648 2 cables
• 16 1088 1024 1114112 2 cables
• Power supply: AC 85-264V 50/60 Hz 2.1A
• Power Consumption: 465W
• Inputs:
• 1 x VGA DB15 Socket VGA-UXGA
• Supported Resolutions:
• 1024x768x60, 800x600x60, 640x480x60, 1280x720x60,
• 1280x800x60, 1280x960x60, 1280x1024x60,
• 1440x900x60, 1400x1050x60, 1600x1200x60,
• 1680x1050x60, 1920x1080x60, 1366x768x60
• 1 x DVI Standard DVI-I socket
• Supported Resolutions:
• SMPTE: 625/25 PAL, 525/29.97 NTSC, 625/50p PAL,
• 525/59.94p NTSC
• 1080i50,1080i59.94/60,720p50,720p59.94/60
• VESA: 800x600x60Hz, 1024x768x60Hz, 1280x768x60Hz,
• 1280x1024x60Hz, 1600x1200x60Hz, 1920x1080x60Hz,
• 1920x1080x50Hz
• 2 x USB
• 1 USB port is used to play only video content and
• the other only for images.
• Outputs:
• 2 x DVI Output Standard DVI-I Socket
• Supported Resolutions:
• VESA: 800x600x60Hz, 1024x768x60Hz, 1024x768x75Hz,
• 1280x720x60Hz, 1280x720x50Hz, 1280x768x60Hz,
• 1280x800x60Hz, 1280x1024x60Hz, 1360x768x60Hz,
• 1366x768x60Hz, 1400x1050x60Hz, 1440x900x60Hz,
• 1600x1200x60Hz, 1680x1050x60Hz, 1920x1080x60Hz,
• 1920x1080x50Hz, 1920x1200x60Hz, 2048x1152x60Hz,
• 2560x812x60Hz, 2560x1152x50Hz.
• 1 x VGA DB15 Socket
• Supported Resolutions:
• VESA: 800x600x60Hz, 1024x768x60Hz, 1024x768x75Hz,
• 1280x720x60Hz, 1280x720x50Hz, 1280x768x60Hz,
• 1280x800x60Hz, 1280x1024x60Hz, 1360x768x60Hz,
• 1366x768x60Hz, 1400x1050x60Hz, 1440x900x60Hz,
• 1600x1200x60Hz, 1680x1050x60Hz, 1920x1080x60Hz,
• 1920x1080x50Hz, 1920x1200x60Hz, 2048x1152x60Hz,
• 2560x812x60Hz, 2560x1152x50Hz.
• Control: Remote RS232, USB control
• Source Switch: support every signal alpha key
• operation
• PIP: Support PIP and PBP for any channel
• AV Sync: supported
• Working Environment: 0°C~45°C
• Humidity: 10% to 90%
• Dimensions: 480 x 268 x 145
• Weight: 2,60 kg
• Sender Card supports following resolutions
• 60HZ output: TS802(D) support capability
• No Max support Note
• Width Height Total
• 1 2048 320 655360 1 cable
• 3 1984 320 634880 1 cable
• 4 1920 320 614400 1 cable
• 5 1856 352 653312 1 cable
• 6 1792 352 630784 1 cable
• 7 1728 352 608256 1 cable
• 8 1664 384 638976 1 cable
• 9 1600 384 614400 1 cable
• 10 1536 416 638976 1 cable
• 11 1472 416 612352 1 cable
• 12 1408 448 630784 1 cable
• 13 1344 480 645120 1 cable
• 14 1280 512 655360 1 cable
• 15 1216 512 622592 1 cable
• 16 1152 512 589824 1 cable
• 17 1088 512 557056 1 cable
• 18 1024 640 655360 1 cable
• 19 896 640 573440 1 cable
• 20 832 640 532480 1 cable
• 21 768 640 491520 1 cable
• 22 704 640 450560 1 cable
• 23 640 640 409600 1 cable
• 60HZ output: TS802(D) support capability
• No Max support Note
• Width Height Total
• 1 2048 640 1310720 2 cables
• 3 1920 672 1290240 2 cables
• 4 1856 704 1306624 2 cables
• 5 1792 720 1290240 2 cables
• 6 1728 736 1271808 2 cables
• 7 1664 768 1277952 2 cables
• 8 1600 800 1280000 2 cables
• 9 1536 832 1277952 2 cables
• 10 1472 880 1295360 2 cables
• 11 1408 928 1306624 2 cables
• 12 1344 960 1290240 2 cables
• 13 1280 1024 1310720 2 cables
• 14 1216 1024 1245184 2 cables
• 15 1152 1024 1179648 2 cables
• 16 1088 1024 1114112 2 cables
