• Zoomrange 13° - 37°
• 2 Rotating Gobowheels
• CMY & CTO
• Digital motion FX

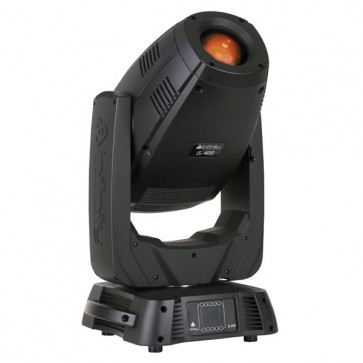

The Infinity® iS-400 is a top-in-range 440W LED moving head. A full feature fixture with a double rotating gobo wheel, CMY and dichroic color wheel, CTO, Prism, Frost, 1:3 zoom range, and Iris. Each gobo wheel has a special multi-colored gobo which can be combined and morphed to create amazing colorful projections and mid-air effects.
Because of the independently rotating gobo wheels, combined with a rotating 3-facet prism, the possibilities of beam- and projection creations are virtually endless. The digital motion FX can generate effects on top of the gobo set for even more dramatic projections. The iS-400 is equipped high grade optics and a 440Watt LED chip to replace 700/800 watt discharge fixtures
• 2 Rotating Gobowheels
• CMY & CTO
• Digital motion FX
The Infinity® iS-400 is a top-in-range 440W LED moving head. A full feature fixture with a double rotating gobo wheel, CMY and dichroic color wheel, CTO, Prism, Frost, 1:3 zoom range, and Iris. Each gobo wheel has a special multi-colored gobo which can be combined and morphed to create amazing colorful projections and mid-air effects.
Because of the independently rotating gobo wheels, combined with a rotating 3-facet prism, the possibilities of beam- and projection creations are virtually endless. The digital motion FX can generate effects on top of the gobo set for even more dramatic projections. The iS-400 is equipped high grade optics and a 440Watt LED chip to replace 700/800 watt discharge fixtures
Specifikationer
Detaljer
• Output
• Lux @ 5m: 16000 (13°)
• Beam Angle: 13° - 37°
• Light Source: 440W White LED (LumiEngin)
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 650W max. at full output
• Control
• On-Board: Battery powered full color display
• including gravity sensor
• Battery lifetime: max 30 days (full charge)
• Mode: DMX, Auto & Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 38ch /Basic 28ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Focus: Motorized autofocus
• Iris: Motorized 0-100%
• Zoom: Motorized
• Prism: 3-facet rotating prism
• Frost filter: Yes
• Animation: Digital motion FX
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Pan/Tilt modes: Speed / Smooth
• Special: Pan/ Tilt, Color,Gobo change blackout,
• User-selectable Pan & Tilt ranges,
• 540°/360°/180°, 270°/180°/90°, Reverse Pan / Tilt
• movement
• Gobos & Colors
• Rotating Gobowheel 1: 6 Glass
• Rotating Gobowheel 2: 6 Glass
• Gobo functions: Gobo-flow effect,Gobo shake
• Rotation: Bi-directional
• Gobo 1 inner diameter: 28mm
• Gobo 2 inner diameter: 26mm
• Gobo outer diameter: 32mm
• Colorwheel: 7 dichroic-filters + white
• CMY: 0-100%
• CTO: 0-100%
• Color functions: Split colors, Rainbow-flow
• effect, CMY Macros
• Physical
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Data Connection: XLR 3&5p & RJ-45 in- & output
• Power connection: Powercon input
• Dimensions (WxDxH): 346 x 417 x 616 mm
• Weight: 35kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C
• Lux @ 5m: 16000 (13°)
• Beam Angle: 13° - 37°
• Light Source: 440W White LED (LumiEngin)
• Electrical
• Input Voltage: 100-240 VAC
• Power consumption: 650W max. at full output
• Control
• On-Board: Battery powered full color display
• including gravity sensor
• Battery lifetime: max 30 days (full charge)
• Mode: DMX, Auto & Master/Slave
• Control Protocol: DMX512
• Control Personality: Advanced 38ch /Basic 28ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Focus: Motorized autofocus
• Iris: Motorized 0-100%
• Zoom: Motorized
• Prism: 3-facet rotating prism
• Frost filter: Yes
• Animation: Digital motion FX
• Movement
• Pan: 540°
• Tilt: 270°
• Pan/Tilt resolution: 16 bit
• Pan/Tilt modes: Speed / Smooth
• Special: Pan/ Tilt, Color,Gobo change blackout,
• User-selectable Pan & Tilt ranges,
• 540°/360°/180°, 270°/180°/90°, Reverse Pan / Tilt
• movement
• Gobos & Colors
• Rotating Gobowheel 1: 6 Glass
• Rotating Gobowheel 2: 6 Glass
• Gobo functions: Gobo-flow effect,Gobo shake
• Rotation: Bi-directional
• Gobo 1 inner diameter: 28mm
• Gobo 2 inner diameter: 26mm
• Gobo outer diameter: 32mm
• Colorwheel: 7 dichroic-filters + white
• CMY: 0-100%
• CTO: 0-100%
• Color functions: Split colors, Rainbow-flow
• effect, CMY Macros
• Physical
• Color: Black
• Housing: Metal & Flame-retardant plastic
• Data Connection: XLR 3&5p & RJ-45 in- & output
• Power connection: Powercon input
• Dimensions (WxDxH): 346 x 417 x 616 mm
• Weight: 35kg
• Certification and Safety
• Certification: CE
• Max. ambient Temp.: 40°C
