• Continuous Pan & Tilt movement
• Additional double Y-Axis movements
• Pixel control
• RGBW & CMY Color mode

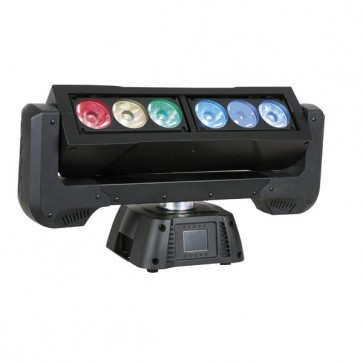

The infinity iFX-615 is a moving batten with 2 individual moving sections. It has continuous rotating on X- and Y-axis, and 2 separate LED sections (3LEDs each) with a movement of +/- 15°. With this additional movement in both directions and pixelcontrol you can create stunning beam and sweep effects. It has 6 pcs 67mm 4,5° lenses with 15W RGBW LEDs with exact the same output and optics as the iM-2515 and iB-715. The infinity iFX-615 gives light designers a new tool to lift their creativity and show to a higher level.
• Additional double Y-Axis movements
• Pixel control
• RGBW & CMY Color mode
The infinity iFX-615 is a moving batten with 2 individual moving sections. It has continuous rotating on X- and Y-axis, and 2 separate LED sections (3LEDs each) with a movement of +/- 15°. With this additional movement in both directions and pixelcontrol you can create stunning beam and sweep effects. It has 6 pcs 67mm 4,5° lenses with 15W RGBW LEDs with exact the same output and optics as the iM-2515 and iB-715. The infinity iFX-615 gives light designers a new tool to lift their creativity and show to a higher level.
Specifikationer
Detaljer
• Output
• Lumen: 440 lm per pixel
• Beam Angle: 4.5°
• Light Source: Osram Ostar 6x15W RGBW 4-in-1
• Electrical
• Input voltage: 100-240V / 50-60Hz (auto ranging)
• Power consumption: 250W at full output
• Control
• On Board: Battery powered full color display
• including gravity sensor
• Mode: DMX, Auto, Master/Slave
• Control protocol: DMX-512
• Control personality: Advanced 49 ch / Basic 25ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Dimmer speed: Smooth, Fast
• Color balance: Separate RGBW adjustment
• Strobe: 0-20Hz
• Movement
• Pan: 540° and continuous
• Tilt: 270° and continuous
• Y-axis 1&2: -15° / + 15°
• Pan/Tilt resolution: 16 bit
• Special: Pan/Tilt change black out, User
• selectable Pan & Tilt ranges, 540°/360°/180°,
• Reverse Pan / Tilt movement
• Physical
• Color: Black
• Housing: Metal & Flame retardant plastic
• Data connections: XLR 3p in/out
• Power connections: Powercon in- output
• Dimensions: 600 x 203 x 310 mm
• Weight: 10kg
• Certification and Safety
• Certification: CE
• Max. ambient temp: 40°
• Lumen: 440 lm per pixel
• Beam Angle: 4.5°
• Light Source: Osram Ostar 6x15W RGBW 4-in-1
• Electrical
• Input voltage: 100-240V / 50-60Hz (auto ranging)
• Power consumption: 250W at full output
• Control
• On Board: Battery powered full color display
• including gravity sensor
• Mode: DMX, Auto, Master/Slave
• Control protocol: DMX-512
• Control personality: Advanced 49 ch / Basic 25ch
• Wireless DMX: optional available
• Optical system
• Dimmer: 0-100%
• Dimmer curves: Linear, Square, I-Square, S curve
• Dimmer speed: Smooth, Fast
• Color balance: Separate RGBW adjustment
• Strobe: 0-20Hz
• Movement
• Pan: 540° and continuous
• Tilt: 270° and continuous
• Y-axis 1&2: -15° / + 15°
• Pan/Tilt resolution: 16 bit
• Special: Pan/Tilt change black out, User
• selectable Pan & Tilt ranges, 540°/360°/180°,
• Reverse Pan / Tilt movement
• Physical
• Color: Black
• Housing: Metal & Flame retardant plastic
• Data connections: XLR 3p in/out
• Power connections: Powercon in- output
• Dimensions: 600 x 203 x 310 mm
• Weight: 10kg
• Certification and Safety
• Certification: CE
• Max. ambient temp: 40°
