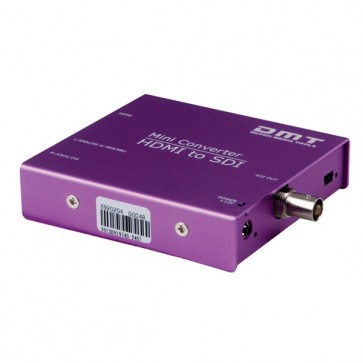

HDMI to SDI video converter,can realize the switching from HDMI to 3G/HD/SD-SDI perfectly. It supports 1 HDMI input, 2 balanced analog audio input or 1 digital AES/EBU input, and 1SDI output. HDMI to SDI converter supports input and output resolution of 480i, 576i, 720p, 1080i and 1080p, also supports left and right analog sound channel input, digital AES/EBU input, HDMI embedded audio input and mute function. It can adapt to multiple rates of SDI signal, including 3G-SDI, HD-SDI and SD- SDI. Easy operation.
Specifikationer
Detaljer
• Input:
• 1) 1 x HDMI (HDMI 1.3)
• 2) 2 x Analog audio
• Output:
• 1) 1 x SDI (SD/HD Compatible)
• Output resolution:
• Same to input resolution.
• SDI support SD, HD, 3G.
• Control Interface: USB
• Size: 98mm x 92mm x 22mm
• Power supply: +12V 3.5 inch
• Temperature: 0°C~40°C
• Humidity: 10%~85%
• Formats:
• 720 x 480i @ 59.94/60Hz
• 720x 576i @ 50Hz
• 1280 x 720p @ 59.94/60Hz
• 1280 x 720p @ 50Hz
• 1920 x 1080i @ 59.94/60Hz
• 1920 x 1080i @ 50Hz
• 1920 x 1080p @ 29.97/30Hz
• 1920 x 1080p @ 25Hz
• 1920 x 1080p @ 23.98/24Hz
• 1920 x 1080p @ 59.94/60Hz
• 1920 x 1080p @ 50Hz
• Video sampling, SDI input is sampled by 10 bit,
• 4:2:2
• SDI color precision is 10 bit
• 1) 1 x HDMI (HDMI 1.3)
• 2) 2 x Analog audio
• Output:
• 1) 1 x SDI (SD/HD Compatible)
• Output resolution:
• Same to input resolution.
• SDI support SD, HD, 3G.
• Control Interface: USB
• Size: 98mm x 92mm x 22mm
• Power supply: +12V 3.5 inch
• Temperature: 0°C~40°C
• Humidity: 10%~85%
• Formats:
• 720 x 480i @ 59.94/60Hz
• 720x 576i @ 50Hz
• 1280 x 720p @ 59.94/60Hz
• 1280 x 720p @ 50Hz
• 1920 x 1080i @ 59.94/60Hz
• 1920 x 1080i @ 50Hz
• 1920 x 1080p @ 29.97/30Hz
• 1920 x 1080p @ 25Hz
• 1920 x 1080p @ 23.98/24Hz
• 1920 x 1080p @ 59.94/60Hz
• 1920 x 1080p @ 50Hz
• Video sampling, SDI input is sampled by 10 bit,
• 4:2:2
• SDI color precision is 10 bit
