Beskrivelse
Detaljer
• Ultra-low noise discrete MIC Preamps with +48V Phantom Power
• Compressors control on first MIC channels
• 3-band EQ and Peak LEDs on each MIC channels.
2-band EQ and Peak LEDs on Stereo channels.
• 1 AUX Sends POST Fader
• Optional expandable with USB or Bluetooth player

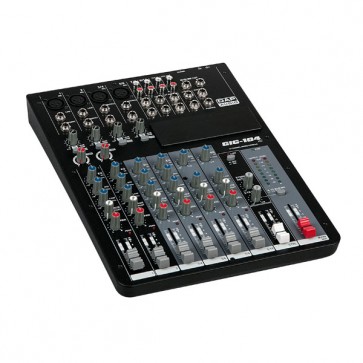

The GIG-104 C Mixing Console is packed with features that cannot be found in other consoles of it's size: 4 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 1 auxiliary control, highly accurate 8-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.
• Compressors control on first MIC channels
• 3-band EQ and Peak LEDs on each MIC channels.
2-band EQ and Peak LEDs on Stereo channels.
• 1 AUX Sends POST Fader
• Optional expandable with USB or Bluetooth player
The GIG-104 C Mixing Console is packed with features that cannot be found in other consoles of it's size: 4 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 1 auxiliary control, highly accurate 8-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.
Specifikationer
Detaljer
• Mono Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS balanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -35dBu ~ +15dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Stereo Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS/RCA unbalanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -20dBu ~ +20dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Channels EQ
• High: +/- 15dB @ 12kHz
• Mid: +/- 15dB @ 2,5kHz
• Low: +/- 15dB @ 80Hz
• Impedances
• Microphone input: 1,8K Ohm
• Other inputs: >10K Ohm
• Tape output: 1K Ohm
• All other outputs: 120 Ohm
• Power supply: AC 100- 240V 50Hz/60Hz
• Power consumption: 40 Watt
• Measurements: 343 x 254 x 63mm
• Weight: 2,48 Kg
• Mic Input: XLR balanced
• Line input: 1/4- TRS balanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -35dBu ~ +15dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Stereo Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS/RCA unbalanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -20dBu ~ +20dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Channels EQ
• High: +/- 15dB @ 12kHz
• Mid: +/- 15dB @ 2,5kHz
• Low: +/- 15dB @ 80Hz
• Impedances
• Microphone input: 1,8K Ohm
• Other inputs: >10K Ohm
• Tape output: 1K Ohm
• All other outputs: 120 Ohm
• Power supply: AC 100- 240V 50Hz/60Hz
• Power consumption: 40 Watt
• Measurements: 343 x 254 x 63mm
• Weight: 2,48 Kg
