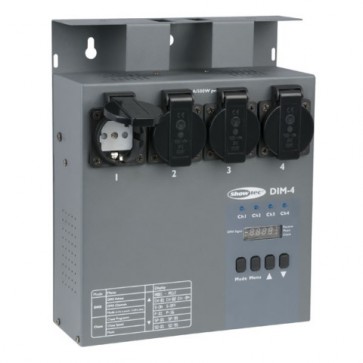

The DIM-4 is a compact but powerful dimming pack. It has 4 channels which each can be loaded up to Each. With a total power consumption of 12A dimming pack can fit any socket. The DIM-4 can be fully controlled by DMX but has as well an built in chaser as well a sound-control function. Furthermore the DIM-4 set can be set in a 1-channel, 2-channel or 4-channel mode.
Specifications:
• Input voltage: 230V/50Hz
• Channel Output: 3A / CH., Total 12A
• Control: DMX-512, Stand-alone, Music control
• DMX channels: 1,2 or 4
• Mode: Dim or Switch
• Data in/out: 3 pole XLR
• Powerconnection: Shuko plug
• Poweroutput: Schuko chassis per channel
• Monitor: control LED per channel, DMX signal led
• Dimensions: 220 x 100 x 275 mm (LxWxH)
• Weight: 2,95 kg
Leverandør beskrivelse:
• Music-controlled
• Schuko Outlets
• DMX-512 4CH. Dimmer pack
• 16 built-in programs
• Stand-alone function
The DIM-4 is a compact but powerful dimming pack. It has 4 channels which each can be loaded up to 3A Each. With a total power consumption of 8A this dimming pack can fit any socket. The DIM-4 can be fully controlled by DMX but has as well an built in chaser as well a sound-control function. Furthermore the DIM-4 set can be set in a 1-channel, 2-channel or 4-channel mode.
Specifications:
• Input voltage: 230V/50Hz
• Channel Output: 3A / CH., Total 12A
• Control: DMX-512, Stand-alone, Music control
• DMX channels: 1,2 or 4
• Mode: Dim or Switch
• Data in/out: 3 pole XLR
• Powerconnection: Shuko plug
• Poweroutput: Schuko chassis per channel
• Monitor: control LED per channel, DMX signal led
• Dimensions: 220 x 100 x 275 mm (LxWxH)
• Weight: 2,95 kg
Leverandør beskrivelse:
• Music-controlled
• Schuko Outlets
• DMX-512 4CH. Dimmer pack
• 16 built-in programs
• Stand-alone function
The DIM-4 is a compact but powerful dimming pack. It has 4 channels which each can be loaded up to 3A Each. With a total power consumption of 8A this dimming pack can fit any socket. The DIM-4 can be fully controlled by DMX but has as well an built in chaser as well a sound-control function. Furthermore the DIM-4 set can be set in a 1-channel, 2-channel or 4-channel mode.
Specifikationer
Detaljer
• Input voltage: 230V/50Hz
• Channel Output: 3A / CH., Total 8A
• Control: DMX-512, Stand-alone, Music control
• DMX channels: 1,2 or 4
• Mode: Dim or Switch
• Data in/out: 3 pole XLR
• Powerconnection: Shuko plug
• Poweroutput: Schuko chassis per channel
• Monitor: Control LED per channel, DMX signal led
• Dimensions: 220 x 82 x 275 mm (LxWxH)
• Weight: 3,5 kg
• Channel Output: 3A / CH., Total 8A
• Control: DMX-512, Stand-alone, Music control
• DMX channels: 1,2 or 4
• Mode: Dim or Switch
• Data in/out: 3 pole XLR
• Powerconnection: Shuko plug
• Poweroutput: Schuko chassis per channel
• Monitor: Control LED per channel, DMX signal led
• Dimensions: 220 x 82 x 275 mm (LxWxH)
• Weight: 3,5 kg
