Beskrivelse
Detaljer
• Professionel bundkasse med 15" bas
• Belastning: 400W RMS/800W musik/1600W peak
• 35Hz-160Hz (-10dB) - følsomhed 103dB
• Indb. 160Hz delefilter til topkasser - SPL 132dB
• Mål 605x500x710cm (BxDxH) - Vægt 32,4 kg
Kraftig bundkasse med finish helt i top. Passer perfekt som bund til XT-serien, og kan også bruges i den store hjemmebiograf eller bandet.
Kan bruges uden elektronisk delefilter med det indbyggede passive delefilter.
Det kompakte design sammen med den direkte og naturlige lyd gør XT serien til en meget attraktiv serie. Kvaliteten fås næppe bedre i dette prisleje.
• Cross-over bypass switch
• High pass filtered output with phase switch
• Only one amplifier needed for a complete set up
with 4 subs and 2 tops
• Compact design

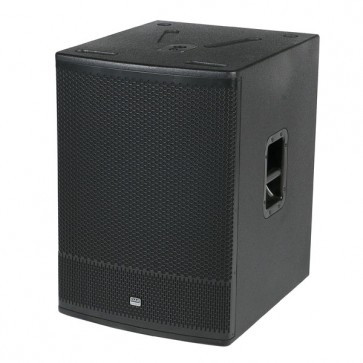

A compact 15" frontloaded subwoofer with a 3" voice coil and a long cone excursion for minimal distortion at full power. It has an optimal Q-load for a very smooth and deep frequency response. Due to the advanced transducer cooling system it has a high power handling capacity. It is finished with scratch resistant black spray. The DAP X-series is a successful speaker range since 2006. They have proven their reliability, sound quality and high power handling for many years now. DAP audio has upgraded the looks with the XT series, the metal grill made it more road-proof and more stylish. Now DAP audio again improved this range by using a better scratch resistant paint and reducing the weight of the complete range. Also the XT MKII is better protected against overload and gives the sound more definition and less distortion in high frequencies when playing on max power.
• Cross-over bypass switch
• High pass filtered output with phase switch
• Only one amplifier needed for a complete set up
with 4 subs and 2 tops
• Compact design
A compact 15" frontloaded subwoofer with a 3" voice coil and a long cone excursion for minimal distortion at full power. It has an optimal Q-load for a very smooth and deep frequency response. Due to the advanced transducer cooling system it has a high power handling capacity. It is finished with scratch resistant black spray. The DAP X-series is a successful speaker range since 2006. They have proven their reliability, sound quality and high power handling for many years now. DAP audio has upgraded the looks with the XT series, the metal grill made it more road-proof and more stylish. Now DAP audio again improved this range by using a better scratch resistant paint and reducing the weight of the complete range. Also the XT MKII is better protected against overload and gives the sound more definition and less distortion in high frequencies when playing on max power.
Leverandør beskrivelse:
• Cross-over bypass switch
• High pass filtered output with phase switch
• Only one amplifier needed for a complete set up
with 4 subs and 2 tops
• Compact design
A compact 15" frontloaded subwoofer with a 3" voice coil and a long cone excursion for minimal distortion at full power. It has an optimal Q-load for a very smooth and deep frequency response. Due to the advanced transducer cooling system it has a high power handling capacity. It is finished with scratch resistant black spray. The DAP X-series is a successful speaker range since 2006. They have proven their reliability, sound quality and high power handling for many years now. DAP audio has upgraded the looks with the XT series, the metal grill made it more road-proof and more stylish. Now DAP audio again improved this range by using a better scratch resistant paint and reducing the weight of the complete range. Also the XT MKII is better protected against overload and gives the sound more definition and less distortion in high frequencies when playing on max power.
• Belastning: 400W RMS/800W musik/1600W peak
• 35Hz-160Hz (-10dB) - følsomhed 103dB
• Indb. 160Hz delefilter til topkasser - SPL 132dB
• Mål 605x500x710cm (BxDxH) - Vægt 32,4 kg
Kraftig bundkasse med finish helt i top. Passer perfekt som bund til XT-serien, og kan også bruges i den store hjemmebiograf eller bandet.
Kan bruges uden elektronisk delefilter med det indbyggede passive delefilter.
Det kompakte design sammen med den direkte og naturlige lyd gør XT serien til en meget attraktiv serie. Kvaliteten fås næppe bedre i dette prisleje.
• Cross-over bypass switch
• High pass filtered output with phase switch
• Only one amplifier needed for a complete set up
with 4 subs and 2 tops
• Compact design
A compact 15" frontloaded subwoofer with a 3" voice coil and a long cone excursion for minimal distortion at full power. It has an optimal Q-load for a very smooth and deep frequency response. Due to the advanced transducer cooling system it has a high power handling capacity. It is finished with scratch resistant black spray. The DAP X-series is a successful speaker range since 2006. They have proven their reliability, sound quality and high power handling for many years now. DAP audio has upgraded the looks with the XT series, the metal grill made it more road-proof and more stylish. Now DAP audio again improved this range by using a better scratch resistant paint and reducing the weight of the complete range. Also the XT MKII is better protected against overload and gives the sound more definition and less distortion in high frequencies when playing on max power.
• Cross-over bypass switch
• High pass filtered output with phase switch
• Only one amplifier needed for a complete set up
with 4 subs and 2 tops
• Compact design
A compact 15" frontloaded subwoofer with a 3" voice coil and a long cone excursion for minimal distortion at full power. It has an optimal Q-load for a very smooth and deep frequency response. Due to the advanced transducer cooling system it has a high power handling capacity. It is finished with scratch resistant black spray. The DAP X-series is a successful speaker range since 2006. They have proven their reliability, sound quality and high power handling for many years now. DAP audio has upgraded the looks with the XT series, the metal grill made it more road-proof and more stylish. Now DAP audio again improved this range by using a better scratch resistant paint and reducing the weight of the complete range. Also the XT MKII is better protected against overload and gives the sound more definition and less distortion in high frequencies when playing on max power.
Leverandør beskrivelse:
• Cross-over bypass switch
• High pass filtered output with phase switch
• Only one amplifier needed for a complete set up
with 4 subs and 2 tops
• Compact design
A compact 15" frontloaded subwoofer with a 3" voice coil and a long cone excursion for minimal distortion at full power. It has an optimal Q-load for a very smooth and deep frequency response. Due to the advanced transducer cooling system it has a high power handling capacity. It is finished with scratch resistant black spray. The DAP X-series is a successful speaker range since 2006. They have proven their reliability, sound quality and high power handling for many years now. DAP audio has upgraded the looks with the XT series, the metal grill made it more road-proof and more stylish. Now DAP audio again improved this range by using a better scratch resistant paint and reducing the weight of the complete range. Also the XT MKII is better protected against overload and gives the sound more definition and less distortion in high frequencies when playing on max power.
Specifikationer
Detaljer
• Nominal Impedance: 8 Ohm
• Continuous power: 400 Watt
• Program power: 800 Watt
• Peak power: 1600 Watt
• Freq. Response (-3 dB): 42 - 160 Hz
• Freq. Range (-10 dB): 35 - 200 Hz
• Recommended High Pass Filter: 38 Hz, BW-24
• Crossover Frequency: 160 Hz, 12 dB/Oct
• Crossover Frequency high out: 160 Hz, 6 dB/Oct
• Sensitivity (Half Space): 103 dB / W / m
• Peak SPL at 1 m (Theoretical): 135 dB
• Nominal Dispersion (H x V): 360° x 180°
• Pole-mount: 35mm + M20 Thread
• Dimensions : 605 x 500 x 710 mm
• Weight: 32,4 kg
• Continuous power: 400 Watt
• Program power: 800 Watt
• Peak power: 1600 Watt
• Freq. Response (-3 dB): 42 - 160 Hz
• Freq. Range (-10 dB): 35 - 200 Hz
• Recommended High Pass Filter: 38 Hz, BW-24
• Crossover Frequency: 160 Hz, 12 dB/Oct
• Crossover Frequency high out: 160 Hz, 6 dB/Oct
• Sensitivity (Half Space): 103 dB / W / m
• Peak SPL at 1 m (Theoretical): 135 dB
• Nominal Dispersion (H x V): 360° x 180°
• Pole-mount: 35mm + M20 Thread
• Dimensions : 605 x 500 x 710 mm
• Weight: 32,4 kg
