Beskrivelse
Detaljer

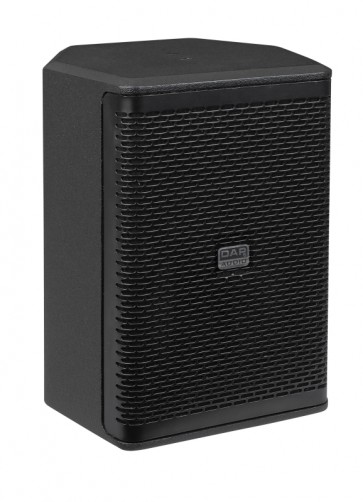

• Prof. installationshøjttaler i sort
• 6,5" bas & 1" horn Celestion
• Belastning: 300W RMS/700W musik - 16 ohm
• 80Hz-20.000Hz - følsomhed 92dB - SPL 122dB
• Anbefalet højpasfilter: 75 Hz 24dB/okt
• Spredning (HxV): 90° x 60°
• Tilslutning: 2 x SpeakOn
• Lakeret trækabinet med gitterfront i stål
• Montagebøjle til væg/loft kan tilkøbes
• Mål 250 x 226 x 333 mm - Vægt 6 kg
DAP Xi-serien er en serie af kraftige installationshøjttalere med god, klar lydgengivelse og lækker, fornem finish.
Velegnet til steder hvor moderat lydtryk ønskes, f.eks. cafe, konference, auditorium, barer mv.
Leverandør beskrivelse:
• Made for D8429 wall bracket
• Recessed Speakon chassis, no inner adapter
• Smooth frequency response.
• Rotatable 90° x 60° horn
• Detachable metal grill
The XI Series is designed for installation use. The Top cabinets have special mountings at the backside which fits the DAP D8429 Compact speaker wall bracket but also the K&M 24470/80 bracket. To create a nice design it has no inner adapter and only one grip on the backside with a recessed Speakon chassis. It is finished with scratch resistant paint and a fast and easy detachable metal grill. The horn (Xi-8/10) can be rotated if you like to use the cabinet vertical. The high power Subwoofer has a ultra-compact design so it will fit in every location. A special designed wall bracket makes it also possible to mount the subwoofer to a wall. The Xi-series has a HIFI sound quality and can handle high pressure levels.
• 6,5" bas & 1" horn Celestion
• Belastning: 300W RMS/700W musik - 16 ohm
• 80Hz-20.000Hz - følsomhed 92dB - SPL 122dB
• Anbefalet højpasfilter: 75 Hz 24dB/okt
• Spredning (HxV): 90° x 60°
• Tilslutning: 2 x SpeakOn
• Lakeret trækabinet med gitterfront i stål
• Montagebøjle til væg/loft kan tilkøbes
• Mål 250 x 226 x 333 mm - Vægt 6 kg
DAP Xi-serien er en serie af kraftige installationshøjttalere med god, klar lydgengivelse og lækker, fornem finish.
Velegnet til steder hvor moderat lydtryk ønskes, f.eks. cafe, konference, auditorium, barer mv.
Leverandør beskrivelse:
• Made for D8429 wall bracket
• Recessed Speakon chassis, no inner adapter
• Smooth frequency response.
• Rotatable 90° x 60° horn
• Detachable metal grill
The XI Series is designed for installation use. The Top cabinets have special mountings at the backside which fits the DAP D8429 Compact speaker wall bracket but also the K&M 24470/80 bracket. To create a nice design it has no inner adapter and only one grip on the backside with a recessed Speakon chassis. It is finished with scratch resistant paint and a fast and easy detachable metal grill. The horn (Xi-8/10) can be rotated if you like to use the cabinet vertical. The high power Subwoofer has a ultra-compact design so it will fit in every location. A special designed wall bracket makes it also possible to mount the subwoofer to a wall. The Xi-series has a HIFI sound quality and can handle high pressure levels.
Specifikationer
Detaljer
• Nominal Impedance: 8 Ohm
• Continuous power: 250 Watt
• Program power: 500 Watt
• Peak power: 1000 Watt
• Freq. Response (-3 dB): 65 - 18.000 Hz
• Freq. Range (-10 dB): 55 - 20.000 Hz
• Recommended High Pass Filter: 55 Hz, BW-24
• Crossover Frequency: 3300 Hz, 12 dB/Oct
• Sensitivity (Full Space): 94 dB / W / m
• Peak SPL at 1 m (Theoretical): 124 dB
• Nominal Dispersion (HxV): 90° x 60°
• Dimensions : 260 x 270 x 430 mm
• Weight: 11.4 Kg
• Continuous power: 250 Watt
• Program power: 500 Watt
• Peak power: 1000 Watt
• Freq. Response (-3 dB): 65 - 18.000 Hz
• Freq. Range (-10 dB): 55 - 20.000 Hz
• Recommended High Pass Filter: 55 Hz, BW-24
• Crossover Frequency: 3300 Hz, 12 dB/Oct
• Sensitivity (Full Space): 94 dB / W / m
• Peak SPL at 1 m (Theoretical): 124 dB
• Nominal Dispersion (HxV): 90° x 60°
• Dimensions : 260 x 270 x 430 mm
• Weight: 11.4 Kg
