Beskrivelse
Detaljer
• 100V forstærker på 250 watt med 4 zoner
• Output: 70V, 100V. Low imp: 4-16ohm
• 2 x mic input & 2 x AUX input
• Potmeter for hver indgang
• Master, bas og diskant regulering
• 483x400x89mm, 24 kg
100V forstærker på 250watt med 4 zoner. Alle zoner kan switches on/off individuelt af hinanden.
Leverandør beskrivelse:
Features:
• Two microphone inputs, two auxiliary inputs and
two AUX out for line.
• Transformer isolated 240V, 110V, 70V and 4-16
Ohms speaker outputs.
• Muting function.
• Individual volume control and master volume
control.
• Low and high tone control
• Output circuit shorting protection & alarm.
• Chime output.

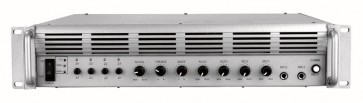

Frontpanel:
• Power switch.
• Power indicator LED
• LED level meter
• Clip
• Z1 switch
• Z2 switch
• Z3 switch
• Z4 switch
• Master volume control
• Treble control
• Bass control
• AUX 2 volume control
• AUX 1 volume control
• MIC 2 volume control
• MIC 1 volume control
• MIC 2 input jack
• MIC 1 input jack
• Chime rest
Chime: To further enhance the system a chime facility can be added as an option, the chime output can be activated by any input.
• Output: 70V, 100V. Low imp: 4-16ohm
• 2 x mic input & 2 x AUX input
• Potmeter for hver indgang
• Master, bas og diskant regulering
• 483x400x89mm, 24 kg
100V forstærker på 250watt med 4 zoner. Alle zoner kan switches on/off individuelt af hinanden.
Leverandør beskrivelse:
Features:
• Two microphone inputs, two auxiliary inputs and
two AUX out for line.
• Transformer isolated 240V, 110V, 70V and 4-16
Ohms speaker outputs.
• Muting function.
• Individual volume control and master volume
control.
• Low and high tone control
• Output circuit shorting protection & alarm.
• Chime output.
Frontpanel:
• Power switch.
• Power indicator LED
• LED level meter
• Clip
• Z1 switch
• Z2 switch
• Z3 switch
• Z4 switch
• Master volume control
• Treble control
• Bass control
• AUX 2 volume control
• AUX 1 volume control
• MIC 2 volume control
• MIC 1 volume control
• MIC 2 input jack
• MIC 1 input jack
• Chime rest
Chime: To further enhance the system a chime facility can be added as an option, the chime output can be activated by any input.
Specifikationer
Detaljer
• Model: VPA-60 VPA-150 VPA-250
• Output: 60W 150W 250W
• Output regulation: Less than 3 dB, no load to full
• load
• Speaker output: Balanced 4-16 Ohm, 70V, 110V, 240V
• AUX output: 600 Ohm 1V (0 dBV)
• Inputs: Mic 1,2/600 Ohm, 2.0 mV (-54 dBV),
• unbalanced
• AUX 1,2/10 kilo-Ohm, 250 mV (-10 dBV), unbalanced
• Freq. response 100 Hz-16 kHz
• Distortion: Less than 0.1% at 1 kHz, 1/3 rated
• power
• Signal to noise ratio: Microphone 1,2 66 dB
• AUX 1,2 70 dB
• Tone: Bass: +- 10 dB at 100 Hz
• Treble: + -10 dB at 10 Hz
• Protection: AC fuse DC voltage, overload and
• short circuit.
• Muting function: Mic 1 overrides, other input
• signals with 0~-30 dB attenuation.
• Power Requirements: AC 220~240V/50~60 Hz
• Power Consumption: 100W 200W 320W
• Dimensions: 483 x 400 x 89 mm
• Gross Weight: 16 kg 20 kg 24 kg
• Output: 60W 150W 250W
• Output regulation: Less than 3 dB, no load to full
• load
• Speaker output: Balanced 4-16 Ohm, 70V, 110V, 240V
• AUX output: 600 Ohm 1V (0 dBV)
• Inputs: Mic 1,2/600 Ohm, 2.0 mV (-54 dBV),
• unbalanced
• AUX 1,2/10 kilo-Ohm, 250 mV (-10 dBV), unbalanced
• Freq. response 100 Hz-16 kHz
• Distortion: Less than 0.1% at 1 kHz, 1/3 rated
• power
• Signal to noise ratio: Microphone 1,2 66 dB
• AUX 1,2 70 dB
• Tone: Bass: +- 10 dB at 100 Hz
• Treble: + -10 dB at 10 Hz
• Protection: AC fuse DC voltage, overload and
• short circuit.
• Muting function: Mic 1 overrides, other input
• signals with 0~-30 dB attenuation.
• Power Requirements: AC 220~240V/50~60 Hz
• Power Consumption: 100W 200W 320W
• Dimensions: 483 x 400 x 89 mm
• Gross Weight: 16 kg 20 kg 24 kg
