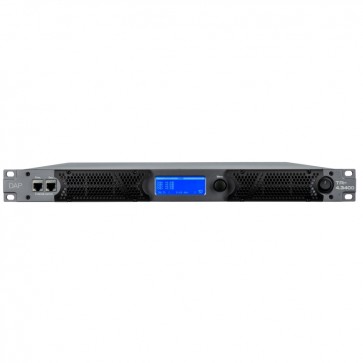

DAP TA-4.3400 4 kanals effekforstærker med DSP

• Kompakt og letvægt effektforstærker 4 kanaler
• 4x2000/3400/5750 watt i 8/4/2 ohm
• 2x6800/11500 watt i 8/4 ohm (bridge)
• 4x3400 watt (70/100 V)
• Indbygget DSP til Windows software
• DSP kan også konfigureres på fronten
• Input: 4 stk 3-ben XLR balanceret
• Output: 4 stk Speakon
• THD Level: <0.05 %
• Signal-to-noise Ratio: >105 dB
• Slew Rate: 50 V/µs
• Amp Technology: Class D
• Damping Factor: 1000:1
• Crosstalk: 90 dBu
• Parametric Input Equalizer: 8 Bands
• Parametric Output Equalizer: 8 Bands
• Input Equalizer Types: High Shelf, Low Shelf
• Crossover: Bessel, Butterworth, Linkwitz Riley
• Crossover Slopes: 6, 12, 24, 48 dB
• Limiter Attack Time Minimum: 1 ms
• Limiter Attack Time Maximum: 2000 ms
• Limiter Release Time Minimum: 20 ms
• Limiter Release Time Maximum: 1000 ms
• Output Delay (Max.): 30 ms
• Input Delay (Max.): 100 ms
• User Presets: 40
• Amplifier Airflow: Front to back
• 45 x 483 x 455 mm, 13,2 kg
• Installation Depth (Excl. Connector): 375 mm
• Protection: Clip limiter, DC voltage, Overheat,
Overload, Under voltage
