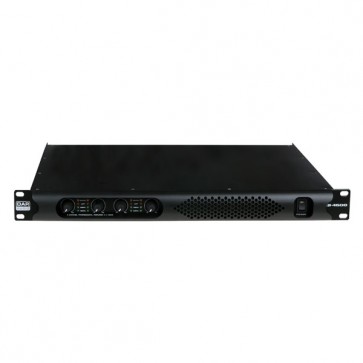

DAP Qi-4600 Class-D forstærker 1U 4x600W

• Output power
• Stereo 4Ohm: 4x 600W
• Stereo 8Ohm: 4x 360W
• Bridge 8Ohm: 2x 1200W
• Parameters
• S/N Ratio: >90dB
• Input sensitivity: 0,775V
• Input impedance: 20kOhm Bal./10Kohm unbal.
• Technology: Class-D
• Protection: short circuit, DC, RF, Soft start
• Cooling: Temp controlled fan
• Power supply: SMPS
• Connections
• Input: 4x XLR
• Output: 4x Speaker connector
• Power: IEC
• Physical
• Dimensions: 388 x 435 x 44 (WxHxD)
• Installation depth: 370 (excl. conn.)
• Weight: 6Kg
• Electrical
• Input Voltage: 100~240VAC...50/60Hz
• Power consumption: 1100W

Leverandør beskrivelse:
• 4 Channels @ 1U Housing
• Soft start technology
• Individual brigde control
• SMPS & Class-D amp
The Qi-amplifier range is developed for installation use to create a perfect match with the Xi installation speaker range. Due to the rugged steel housing it can also be applied for mobile use. With only 1U it gives power for 4 channels. All 4 channels are individual controllable and bridge mode can be set for each stereo pair. With the SMPS and Class-D amplification it is a light weight solution with a high efficiency power consumption / power output ratio. An advanced protection circuit will protect the amplifier and it's connected speakers. It has a short circuit/ thermal, DC ,RF protection and a soft start system. The Qi-amplifiers are made with high-quality low deviation components to ensure a perfect sound quality and a long life time.
