Beskrivelse
Detaljer

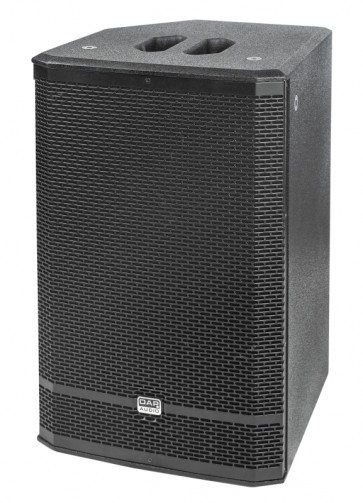

• Fullrange højttaler med 10" bas & 1" horn
• Bas 10" med 50 mm svingspole
• Vedvarende belastning/peak: 250/500W - 8 ohm
• Frekvensområde: 55Hz-19kHz -3dB
• Max SPL @ 1m: 124dB - følsomhed 96dB
• Horn spredning 90° x 45° - roterbart
• Kabinet i 12mm birkefinér med maling, der er
modstandsdygtig overfor ridser. Kan ophænges.
• Speakonstik in/out
• Tophat i bund
• Mål:(H x W x D): 324 x 320 x 500 mm. Vægt 12 kg
Leverandør beskrivelse:
• 240 Watt
• Lightweight: 13 kg
• Reinforced cabinet
• High driver protection
• Bas 10" med 50 mm svingspole
• Vedvarende belastning/peak: 250/500W - 8 ohm
• Frekvensområde: 55Hz-19kHz -3dB
• Max SPL @ 1m: 124dB - følsomhed 96dB
• Horn spredning 90° x 45° - roterbart
• Kabinet i 12mm birkefinér med maling, der er
modstandsdygtig overfor ridser. Kan ophænges.
• Speakonstik in/out
• Tophat i bund
• Mål:(H x W x D): 324 x 320 x 500 mm. Vægt 12 kg
Leverandør beskrivelse:
• 240 Watt
• Lightweight: 13 kg
• Reinforced cabinet
• High driver protection
Specifikationer
Detaljer
• System Type: 2-Way Vented Passive Speaker cabinet
• Continuous Power: 120 Watts
• Peak Power: 240 Watts
• Horn Coverage: 50°H x 50°V
• Speaker Sensitivity (1W.1m): 95 dB SPL ±3dB
• Max. SPL: 118dB at 1m
• Frequency Response: 58Hz~20kHz (- 6dB)
• Impedance: 8?
• Crossover Frequency: 3.2KHz
• Protection: High Frequency Protection
• Woofer: 10" / 2" Voice Coil
• Driver: 1" / 1" Voice Coil
• Construction: 15mm plywood, glued and reinforced
• Paint: Black, scratch resistant
• Pole-mount: ABS 35mm pole-mount
• Connectors: 2 x SPK4
• Dimensions (HxWxD): 550 x 328 x 320 mm
• Weight: 13 kg
• Continuous Power: 120 Watts
• Peak Power: 240 Watts
• Horn Coverage: 50°H x 50°V
• Speaker Sensitivity (1W.1m): 95 dB SPL ±3dB
• Max. SPL: 118dB at 1m
• Frequency Response: 58Hz~20kHz (- 6dB)
• Impedance: 8?
• Crossover Frequency: 3.2KHz
• Protection: High Frequency Protection
• Woofer: 10" / 2" Voice Coil
• Driver: 1" / 1" Voice Coil
• Construction: 15mm plywood, glued and reinforced
• Paint: Black, scratch resistant
• Pole-mount: ABS 35mm pole-mount
• Connectors: 2 x SPK4
• Dimensions (HxWxD): 550 x 328 x 320 mm
• Weight: 13 kg
