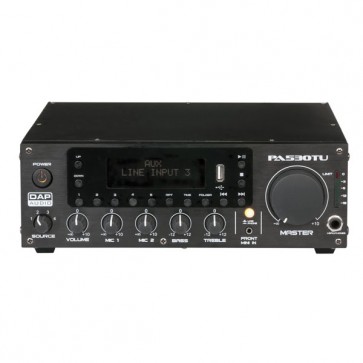

DAP PA-530TU 100V forstærker 30 watt media player

Varenr: D6150
• Compact design
• Media player
• Tuner
• Front line input
The DAP PA-530TU is a compact 30Watt, 100V mixer amplifier with 4 selectable sources and 2 microphone inputs. Both microphone inputs are equipped with phantom power and can also be selected as line input. An integrated speech filter can be applied to improve the audibility. It has one dedicated line input on the backside and a special easy access line/phone front input to connect mp3 players or mobile devices. It has a built-in USB audio player and tuner with a large LCD display which shows the active source, tuner information and ID3 tags. The built-in FM tuner can store 10 presets. The PA-530TU is an all-in-one compact 100V solution for small installations. These amplifiers are designed for PA systems with applications such as announcement, intercommunication, background music and broadcasting in convention-halls, shopping centers, dining rooms, auditoriums and recreation areas. These desk top amplifiers have an integrated protective circuit to withstand overload or short-circuits of output. This results in very high reliability and easy installations without extra audio processors. It is a complete range from simple amplifiers till matrix amplifiers with built-in tuner and media player.
Læs mere om DAP-Audio
2.854,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Compact design
• Media player
• Tuner
• Front line input
The DAP PA-530TU is a compact 30Watt, 100V mixer amplifier with 4 selectable sources and 2 microphone inputs. Both microphone inputs are equipped with phantom power and can also be selected as line input. An integrated speech filter can be applied to improve the audibility. It has one dedicated line input on the backside and a special easy access line/phone front input to connect mp3 players or mobile devices. It has a built-in USB audio player and tuner with a large LCD display which shows the active source, tuner information and ID3 tags. The built-in FM tuner can store 10 presets. The PA-530TU is an all-in-one compact 100V solution for small installations. These amplifiers are designed for PA systems with applications such as announcement, intercommunication, background music and broadcasting in convention-halls, shopping centers, dining rooms, auditoriums and recreation areas. These desk top amplifiers have an integrated protective circuit to withstand overload or short-circuits of output. This results in very high reliability and easy installations without extra audio processors. It is a complete range from simple amplifiers till matrix amplifiers with built-in tuner and media player.

Specifikationer

Detaljer

• Outputs
• Power: 30W
• Zones: 1
• 100V & 8Ohm: Terminals
• Line output: XLR
• Loop through: RCA
• Headphones: 6,3mm Jack
• Inputs
• 2x Mic/Line: XLR/Jack combi & Terminals
• 1x Line: RCA
• Front input: 3,5mm Jack
• Media player
• Source: USB type A
• Supported files: MP3, Wav
• Format: FAT32 up to 32Gb
• Playback: Program, Repeat, Continuous
• Tuner
• FM band: 87,5 - 108 MHz
• Presets: 10
• Antenna: 75Ohm
• Features
• Speech filter: -3dB, 300Hz 6db/oct
• Phantom power: 18V
• Tone Control: Bass 100 Hz, treble 12 KHz, +/-12dB
• General
• Power supply: 230V AC
• Back-up power supply: DC 24V
• Power consumption: 80W
• Power connection: IEC
• Dimensions: 270x262x88mm (WxDxH)
• Weight: 6 Kg

Download

D6150_MANUAL_GB_V1.pdf
