Beskrivelse
Detaljer
• 120W outputs, 100V
• 1 zone
• 7 inputs
• 88x483x328 mm
• 9 kg
Leverandør beskrivelse:
• 1 Zone
• 7 inputs
• Telephone input
• Chime & Ducking

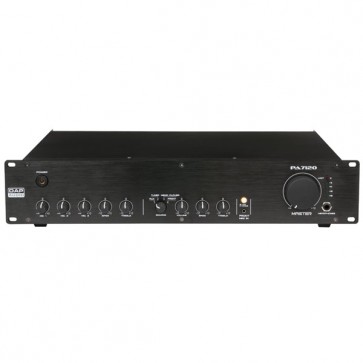

The DAP PA-7120 is a 120 Watt, 100V amplifier mixer with 4 selectable sources and 3 microphone inputs. All microphone inputs are equipped with phantom power and can be selected as line input. An integrated speech filter can be applied to improve the audibility. It has 3 dedicated line inputs on the backside and a special easy access line/phone front input to connect mp3 players or mobile devices. The amplifier also has enhanced features such as, priority, chime with adjustable level, emergency input, ducking level control, loop through connection and an output which can be set as line output, music only or microphone only. These amplifiers are designed for PA systems with applications such as announcement, intercommunication, background music and broadcasting in convention-halls, shopping centers, dining rooms, auditoriums and recreation areas. These desk top amplifiers have an integrated protective circuit to withstand overload or short-circuits of output. This results in very high reliability and easy installations without extra audio processors. It is a complete range from simple amplifiers till matrix amplifiers with built-in tuner and media player.
• 1 zone
• 7 inputs
• 88x483x328 mm
• 9 kg
Leverandør beskrivelse:
• 1 Zone
• 7 inputs
• Telephone input
• Chime & Ducking
The DAP PA-7120 is a 120 Watt, 100V amplifier mixer with 4 selectable sources and 3 microphone inputs. All microphone inputs are equipped with phantom power and can be selected as line input. An integrated speech filter can be applied to improve the audibility. It has 3 dedicated line inputs on the backside and a special easy access line/phone front input to connect mp3 players or mobile devices. The amplifier also has enhanced features such as, priority, chime with adjustable level, emergency input, ducking level control, loop through connection and an output which can be set as line output, music only or microphone only. These amplifiers are designed for PA systems with applications such as announcement, intercommunication, background music and broadcasting in convention-halls, shopping centers, dining rooms, auditoriums and recreation areas. These desk top amplifiers have an integrated protective circuit to withstand overload or short-circuits of output. This results in very high reliability and easy installations without extra audio processors. It is a complete range from simple amplifiers till matrix amplifiers with built-in tuner and media player.
Specifikationer
Detaljer
• Outputs
• Power: 120W
• Zones: 1
• 100V & 8Ohm: Terminals
• Line output: XLR
• Loop through: RCA
• Headphones: 6,3mm Jack
• Inputs
• 3x Mic/Line: XLR/Jack combi & Terminals
• 3x Line: RCA
• Front input: 3,5mm Jack
• Features
• Speech filter: -3dB, 300Hz 6db/oct
• Phantom power: 18V
• Tone Control: Bass 100 Hz, treble 12 KHz, +/-12dB
• Chime: adjustable volume
• Ducking: adjustable suppression
• PTT: Mic input 1
• VOX: Mic input 2
• Telephone input: Override all, terminal
• General
• Power supply: 230V AC
• Back-up power supply: DC 24V
• Power consumption: 250W
• Power connection: IEC
• Dimensions: 483x328x88mm (WxDxH)
• Weight: 9 Kg
• Power: 120W
• Zones: 1
• 100V & 8Ohm: Terminals
• Line output: XLR
• Loop through: RCA
• Headphones: 6,3mm Jack
• Inputs
• 3x Mic/Line: XLR/Jack combi & Terminals
• 3x Line: RCA
• Front input: 3,5mm Jack
• Features
• Speech filter: -3dB, 300Hz 6db/oct
• Phantom power: 18V
• Tone Control: Bass 100 Hz, treble 12 KHz, +/-12dB
• Chime: adjustable volume
• Ducking: adjustable suppression
• PTT: Mic input 1
• VOX: Mic input 2
• Telephone input: Override all, terminal
• General
• Power supply: 230V AC
• Back-up power supply: DC 24V
• Power consumption: 250W
• Power connection: IEC
• Dimensions: 483x328x88mm (WxDxH)
• Weight: 9 Kg
