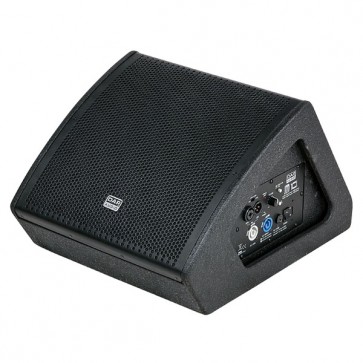

• Fullrange aktiv monitorhøjttaler 10" bas+1" horn
• 2 indbyggede forstærkere: 350W + 65W
• Frekvensområde: 70Hz-20kHz -6dB
• Max SPL @ 1m: 123dB vedvar.
• Power indikator - Volumen og groundlift
• Horn spredning 70° x 70° - tophat i bund
• Kabinet i 15mm MDF med maling, der er
modstandsdygtig overfor ridser. Kan ophænges
• Kombistik jack/XLR in - XRL out
• Mål:(H x W x D):363 x 351 x 323 mm- Vægt 11 kg
Prisstærk aktiv højttalere med hele to indbyggede forstærkere som sikrer bedre lyd. Kabinettet et i robust og sættes på stativ eller bruges på gulv som monitor. Kan bruges til sanganlæg, tale, konference og musik.
Leverer en bund og et lydtryk langt udover det sædvanlige, for en højttaler i denne størrelse.
Leverandør beskrivelse:
• Compact and lightweight
• Powerfull 415W Class D amplifier
• Easy daisy chain with XLR and Powercon
• Stage proof design with rugged metal protective
grill The active Bi-Amp M-series wedge speakers are the stage solution for optimal monitoring. A compact, light-weight and innovative designed housing, combined with a powerful Class D amplifier, high-end components and good electronic protections make this a plug & play speaker for all high demanding professional musicians. The 60° wedge design and coaxial speaker ensures a transparent and direct ?in your face' sound with consistent coverage. Integrated handles protect your connections and also make it very easy to handle them in most difficult stage settings.
• 2 indbyggede forstærkere: 350W + 65W
• Frekvensområde: 70Hz-20kHz -6dB
• Max SPL @ 1m: 123dB vedvar.
• Power indikator - Volumen og groundlift
• Horn spredning 70° x 70° - tophat i bund
• Kabinet i 15mm MDF med maling, der er
modstandsdygtig overfor ridser. Kan ophænges
• Kombistik jack/XLR in - XRL out
• Mål:(H x W x D):363 x 351 x 323 mm- Vægt 11 kg
Prisstærk aktiv højttalere med hele to indbyggede forstærkere som sikrer bedre lyd. Kabinettet et i robust og sættes på stativ eller bruges på gulv som monitor. Kan bruges til sanganlæg, tale, konference og musik.
Leverer en bund og et lydtryk langt udover det sædvanlige, for en højttaler i denne størrelse.
Leverandør beskrivelse:
• Compact and lightweight
• Powerfull 415W Class D amplifier
• Easy daisy chain with XLR and Powercon
• Stage proof design with rugged metal protective
grill The active Bi-Amp M-series wedge speakers are the stage solution for optimal monitoring. A compact, light-weight and innovative designed housing, combined with a powerful Class D amplifier, high-end components and good electronic protections make this a plug & play speaker for all high demanding professional musicians. The 60° wedge design and coaxial speaker ensures a transparent and direct ?in your face' sound with consistent coverage. Integrated handles protect your connections and also make it very easy to handle them in most difficult stage settings.
Specifikationer
Detaljer
• System: Active Bi-Amp 10" Monitor
• Output Power: Class D, 350W LF power, 65W HF power
• Maximum SPL @1M: 123dB/ 126dB Peak
• Frequency resp. (-10dB): 70Hz - 20kHz
• Transducer Low: 10" Woofer, 2,56" Voice Coil
• Transducer High: 1" Neodymium Compression Driver,
• 1" Voice Coil
• Nom Dispersion (HxV): 70° x 70° (-6dB)
• Audio Input: XLR/ Jack Combo balanced
• Link Output: XLR-male balanced
• External Controls: Mic/Line switch, EQ Preset
• switch (Monitor/FOH),
• Ground Lift switch, Volume control,
• Signal-Limiter indication LED,
• Power Switch with green LED
• Electronic Protection: Thermal/ Overload/ Limiter/
• Compressor
• Mounting: Floor and Integrated 35mm Pole Socket
• Power Supply: AC 100V~240V, 50 Hz/60Hz (SPSU)
• Power Input: Neutrik Powercon
• Housing: Wedge design 15 mm MDF with
• Scratch Resistant Black Paint
• Dimensions (HxWxD): 363 x 351 x 323 mm
• Net Weight: 11,4 kg
• Output Power: Class D, 350W LF power, 65W HF power
• Maximum SPL @1M: 123dB/ 126dB Peak
• Frequency resp. (-10dB): 70Hz - 20kHz
• Transducer Low: 10" Woofer, 2,56" Voice Coil
• Transducer High: 1" Neodymium Compression Driver,
• 1" Voice Coil
• Nom Dispersion (HxV): 70° x 70° (-6dB)
• Audio Input: XLR/ Jack Combo balanced
• Link Output: XLR-male balanced
• External Controls: Mic/Line switch, EQ Preset
• switch (Monitor/FOH),
• Ground Lift switch, Volume control,
• Signal-Limiter indication LED,
• Power Switch with green LED
• Electronic Protection: Thermal/ Overload/ Limiter/
• Compressor
• Mounting: Floor and Integrated 35mm Pole Socket
• Power Supply: AC 100V~240V, 50 Hz/60Hz (SPSU)
• Power Input: Neutrik Powercon
• Housing: Wedge design 15 mm MDF with
• Scratch Resistant Black Paint
• Dimensions (HxWxD): 363 x 351 x 323 mm
• Net Weight: 11,4 kg
