Beskrivelse
Detaljer
• 8 input: 5 mic og 3 AUX
• Bas, diskant og volume kontrol
• Indbygget Chime med mute og prioritets-
funktion ved tilslutning til alarmsystem
Mere info i vores katalog
Leverandør beskrivelse:

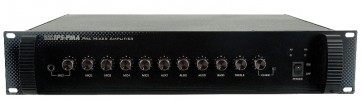

The Pre Mixer Amplifier provides 5 microphone and 3 AUX inputs. It is possible to adjust the bass and treble from your master output signal. To complete this unit, there is an adjustable chime and a volume priority circuit on the first mic input. For emergency signal input you can use the EMC connector, this has also a priority function.
• With DC 24V function
• MIC x 5, AUX x 3 and EMC inputs x 2
• Volume control and tone controls
• Built-in chime, muting and priority function
• High S/N ratio and noiseless
• Bas, diskant og volume kontrol
• Indbygget Chime med mute og prioritets-
funktion ved tilslutning til alarmsystem
Mere info i vores katalog
Leverandør beskrivelse:
The Pre Mixer Amplifier provides 5 microphone and 3 AUX inputs. It is possible to adjust the bass and treble from your master output signal. To complete this unit, there is an adjustable chime and a volume priority circuit on the first mic input. For emergency signal input you can use the EMC connector, this has also a priority function.
• With DC 24V function
• MIC x 5, AUX x 3 and EMC inputs x 2
• Volume control and tone controls
• Built-in chime, muting and priority function
• High S/N ratio and noiseless
Specifikationer
Detaljer
• Power supply: AC 110~120V /
• 220 ~ 240V,
• 60 Hz / 50 Hz
• DC 24V
• Input sensitivity: MIC1-MIC5: 600, 1,8 mV,
• unbalanced
• Output level: 600/1V
• Freq. response: 20 Hz ~ 20 kHz
• S/N ratio: MIC 80 dB, AUX 85 dB
• Tone control: Bass: +/- 10 dB at 100 Hz
• Treble: +/- 10 dB at 10 kHz
• Dimensions (LxWxH): 483 x 370 x 89 mm
• Gross Weight: 11 kg
• Net weight: 7,8 kg
• 220 ~ 240V,
• 60 Hz / 50 Hz
• DC 24V
• Input sensitivity: MIC1-MIC5: 600, 1,8 mV,
• unbalanced
• Output level: 600/1V
• Freq. response: 20 Hz ~ 20 kHz
• S/N ratio: MIC 80 dB, AUX 85 dB
• Tone control: Bass: +/- 10 dB at 100 Hz
• Treble: +/- 10 dB at 10 kHz
• Dimensions (LxWxH): 483 x 370 x 89 mm
• Gross Weight: 11 kg
• Net weight: 7,8 kg
