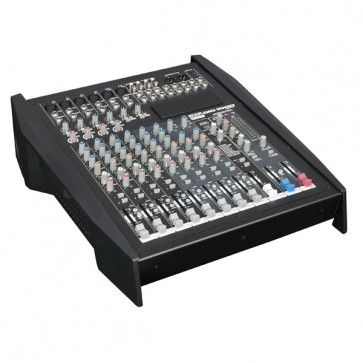

DAP GIG-1000CFX Power mixer 2x500W 12 kanals DSP

Varenr: D2286
• Lightweight all-in-one mixing console
• 2x500W Amplifier
• Compressors control on first MIC channels
• Built-in 24-bit DSP effect with 100 presets.
• Optional expandable with USB or Bluetooth player


The GIG-1000CFX Mixing Console is packed with features that cannot be found in other consoles of it's size: 6 mono (provided with ultra-low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 2 auxiliary control, build-in 24-bit DSP effect with 100 presets, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs. The built-in Amplifier provides 2x 500W Power for your speakers. It is routed directly from the main mix, with the possibility to re-patch the amplifier so it can be used for either your Group outputs ore Auxiliary output. To top it all of the GIG-1000CFX is easy expandable with optional MP3 player, MP3 recorder or Bluetooth module on the top.
Læs mere om DAP-Audio
5.995,00 DKK



Inkl. moms
  • UDGÅET

Video

Ingen video tilgængelig

Beskrivelse

Detaljer

• Lightweight all-in-one mixing console
• 2x500W Amplifier
• Compressors control on first MIC channels
• Built-in 24-bit DSP effect with 100 presets.
• Optional expandable with USB or Bluetooth player


The GIG-1000CFX Mixing Console is packed with features that cannot be found in other consoles of it's size: 6 mono (provided with ultra-low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 2 auxiliary control, build-in 24-bit DSP effect with 100 presets, highly accurate 12-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs. The built-in Amplifier provides 2x 500W Power for your speakers. It is routed directly from the main mix, with the possibility to re-patch the amplifier so it can be used for either your Group outputs ore Auxiliary output. To top it all of the GIG-1000CFX is easy expandable with optional MP3 player, MP3 recorder or Bluetooth module on the top.

Specifikationer

Detaljer

• Mono Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS balanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -35dBu ~ +15dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Stereo Channels
• Mic Input: XLR balanced
• Line input: 1/4- TRS/RCA unbalanced
• Freq response: 10Hz ~ 55kHz, +/- 3dB
• Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
• Gain range: 50dB
• Input sensitivity: -20dBu ~ +20dBu
• LOW Cut: 75Hz
• SNR <-100dBr
• Phantom Power: +48V switchable
• Channels EQ
• High: +/- 15dB @ 12kHz
• Mid: +/- 15dB @ 2,5kHz
• Low: +/- 15dB @ 80Hz
• Impedances
• Microphone input: 1,8K Ohm
• Other inputs: >10K Ohm
• Tape output: 1K Ohm
• All other outputs: 120 Ohm
• Amplifier:
• Power @ 8 Ohm: 2x250W RMS
• Power @ 4 Ohm: 2x500W RMS
• Power @ 2 Ohm: Not Allowed
• Cooling: Speed regulated fan
• Output Connectors: 2x Speakon
• Power supply: AC 100- 240V 50Hz/60Hz
• Power consumption: 1000 Watt
• Measurements: 416 x 340 x 93mm
• Weight: 6,25 Kg
