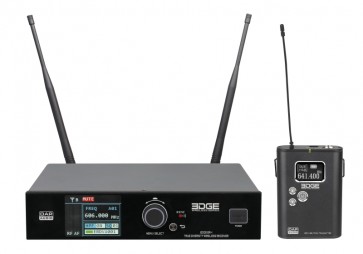

DAP EDGE EBS-1 trådløs UHF sæt med beltpack

Varenr: D1476B
• Power Supply: External 12-15VDC, 800mA
• Connection Input: Mini 4-pin XLR
• Connection Output: XLR + Jack (balanced)
• Type Transmitter : Beltpack
• Frequency Response: 50 - 19000 Hz
• Sensitivity: 1,9 mV/Pa
• Power Transmitter: 2x Battery, AA1.5V not incl
• Lifetime :10 hour
• Frequency Band: 606-668 MHz
• RF Power: 10 mW
• Stability: 0,0015 %
• Frequency Deviation: ±75 kHz
• Spurious Rejection: >50 dBC
• Dimensions Transmitter: 90 x 65 x 22
• Weight Transmitter: 0.11 kg
• Type Receiver: True Diversity
• Power Supply Receiver: External Power Adapter
• S/N Ratio: >100 dBr
• Weight Receiver 1.11 kg
• Dimensions Receiver 250 x 180 x 43 mm
Læs mere om DAP-Audio
4.799,00 DKK



Inkl. moms
  • Ring for leveringstid

Video

Beskrivelse

Detaljer

• Power Supply: External 12-15VDC, 800mA
• Connection Input: Mini 4-pin XLR
• Connection Output: XLR + Jack (balanced)
• Type Transmitter : Beltpack
• Frequency Response: 50 - 19000 Hz
• Sensitivity: 1,9 mV/Pa
• Power Transmitter: 2x Battery, AA1.5V not incl
• Lifetime :10 hour
• Frequency Band: 606-668 MHz
• RF Power: 10 mW
• Stability: 0,0015 %
• Frequency Deviation: ±75 kHz
• Spurious Rejection: >50 dBC
• Dimensions Transmitter: 90 x 65 x 22
• Weight Transmitter: 0.11 kg
• Type Receiver: True Diversity
• Power Supply Receiver: External Power Adapter
• S/N Ratio: >100 dBr
• Weight Receiver 1.11 kg
• Dimensions Receiver 250 x 180 x 43 mm

Specifikationer

Ingen specifikationer tilgængelig

Download

D1476B_MANUAL_GB_V2.pdf
