Beskrivelse
Detaljer
• 2000W Peak Power Class-D amplifier
• Ultra lightweight, rugged and compact design
• DSP allows you to personalize your sound
• Dual input for making your mix
• CELESTION driver inside

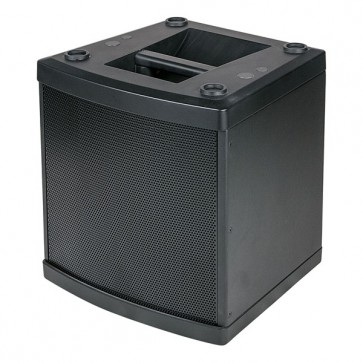

The DLM series is our new solution for all entertainers who need a very lightweight and compact speaker system which is very rugged and roadproof. Due to the efficient Class-D power amplifier and build-in DSP protection system, it is almost impossible to deform your sound when normally used. High-end components, including a CELESTION high-driver, give lots of sound pressure and a very high detailed sound. If you want to have a more personalized sound, this is no problem for the DLM. Just add the optional USB control module and now it is possible to adjust the Gain, Equalizer, Low- & High-pass filter by simply using the interface on your laptop
• Ultra lightweight, rugged and compact design
• DSP allows you to personalize your sound
• Dual input for making your mix
• CELESTION driver inside
The DLM series is our new solution for all entertainers who need a very lightweight and compact speaker system which is very rugged and roadproof. Due to the efficient Class-D power amplifier and build-in DSP protection system, it is almost impossible to deform your sound when normally used. High-end components, including a CELESTION high-driver, give lots of sound pressure and a very high detailed sound. If you want to have a more personalized sound, this is no problem for the DLM. Just add the optional USB control module and now it is possible to adjust the Gain, Equalizer, Low- & High-pass filter by simply using the interface on your laptop
Specifikationer
Detaljer
• System: 2-way Active Speaker system
• Coverage: 90° conical
• Transducer: 12" Woofer, 2.5" voice coil
• Driver: 1" Exit Compression CELESTION Driver,
• 1.75" Voice Coil
• Active Crossover 1.85kHz-DSP Processed with 24dB
• slope
• Digital Presets: NORMAL / USER
• Frequency response: 45Hz-20kHz (-10dB)
• Max SPL @ 1m: 128dB
• Power Amp: High power 500W Low + 500W High
• Input 1: (MIC/Line) with Combo XLR/Jack
• Input 2: Combo XLR/Jack and RCA
• Mix Output: Male XLR balanced
• USB Control (optional): Gain/EQ/ Trim / high pass
• filter,and low pass filter and bandpass filter
• External Control: Volume Control
• Phase Switch
• Power ON
• Clip Limiter
• USB PORT for optional USB control
• Electric Protection:
• Thermal/Convection-Fan/Overload/Digital
• Lim./Compressor
• Handling: One standard 35mm metal pole-mount plus
• one handle on top
• Enclosure: 15mm poplar plywood cabinet & ABS
• High-strength top and bottom protectors
• Dimensions (HxWxD): 414x388x365mm
• Weight: 18,7Kg
• Coverage: 90° conical
• Transducer: 12" Woofer, 2.5" voice coil
• Driver: 1" Exit Compression CELESTION Driver,
• 1.75" Voice Coil
• Active Crossover 1.85kHz-DSP Processed with 24dB
• slope
• Digital Presets: NORMAL / USER
• Frequency response: 45Hz-20kHz (-10dB)
• Max SPL @ 1m: 128dB
• Power Amp: High power 500W Low + 500W High
• Input 1: (MIC/Line) with Combo XLR/Jack
• Input 2: Combo XLR/Jack and RCA
• Mix Output: Male XLR balanced
• USB Control (optional): Gain/EQ/ Trim / high pass
• filter,and low pass filter and bandpass filter
• External Control: Volume Control
• Phase Switch
• Power ON
• Clip Limiter
• USB PORT for optional USB control
• Electric Protection:
• Thermal/Convection-Fan/Overload/Digital
• Lim./Compressor
• Handling: One standard 35mm metal pole-mount plus
• one handle on top
• Enclosure: 15mm poplar plywood cabinet & ABS
• High-strength top and bottom protectors
• Dimensions (HxWxD): 414x388x365mm
• Weight: 18,7Kg
