• Recessed installation
• 2-Way speaker system
• Magnetic grill assembly
• Ultra-thin border

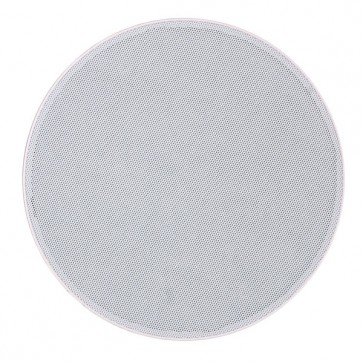

The Design Ceiling Speakers Series from DAP audio are 3 models of 100V 2-way ceiling speakers with a ultra slim design. They are available as 4-, 5 and 6 inch models all with ½ inch high drivers and built-in cross over networks. Due to its slim grill design with very thin border and a limited grill depth, these speakers will become nearly invisible when mounted. The elegant but strong grill is held in place by powerful neodymium magnets. This makes assembly and disassembly very easy but reliable to keep the grill in place during the complete lifetime of the loudspeaker. The mounting of the loudspeaker into the ceiling is easily done by a quick-fixing mechanism which can be tightened by four screws behind the front grill.
• 2-Way speaker system
• Magnetic grill assembly
• Ultra-thin border
The Design Ceiling Speakers Series from DAP audio are 3 models of 100V 2-way ceiling speakers with a ultra slim design. They are available as 4-, 5 and 6 inch models all with ½ inch high drivers and built-in cross over networks. Due to its slim grill design with very thin border and a limited grill depth, these speakers will become nearly invisible when mounted. The elegant but strong grill is held in place by powerful neodymium magnets. This makes assembly and disassembly very easy but reliable to keep the grill in place during the complete lifetime of the loudspeaker. The mounting of the loudspeaker into the ceiling is easily done by a quick-fixing mechanism which can be tightened by four screws behind the front grill.
Specifikationer
Detaljer
• Power Taps: 5/10/20W
• Line Voltage: 100V
• Impedance: 8?
• Speaker size LF: 4 inch (rubber edge)
• Speaker size HF: 0,5 inch
• Frequency response: 110-20kHz
• Sensitivity: 88dB +/- 3dB
• Directivity: 130°conical
• Material: ABS
• Colour: White
• IP rating: IP-40
• Mounting Hole: ø160mm
• Dimensions (LxWxH): 180 x 180 x 80
• Weight: 1Kg
• Line Voltage: 100V
• Impedance: 8?
• Speaker size LF: 4 inch (rubber edge)
• Speaker size HF: 0,5 inch
• Frequency response: 110-20kHz
• Sensitivity: 88dB +/- 3dB
• Directivity: 130°conical
• Material: ABS
• Colour: White
• IP rating: IP-40
• Mounting Hole: ø160mm
• Dimensions (LxWxH): 180 x 180 x 80
• Weight: 1Kg
