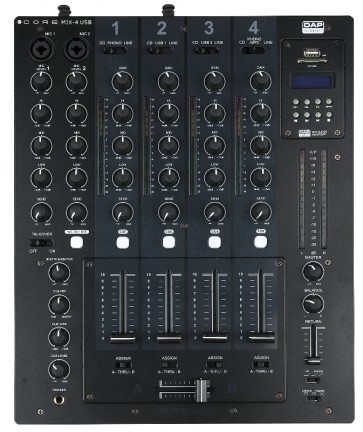

DAP Core Mix-4 ch. m. USB interface

• 4 lyd kanaler & 2 mik. kanaler - 12 input ialt
• High-, mid- og low equalizer på hver kanal
• 1 master out, booth out, assign crossfader, USB
• 19" monterbar i rack ved brug af D2310
• to stk. 16bit/48kHz USB lydkort/interfaces
• Pro DJ link med tilslutning af op til 4 stk. CDJ
• MP3 player 128kbit, 44.1 kHz max 16GB
• Talkover, Send/return, VCA-fadere, LED VU meter
• Mål: 380 x 310 x 88mm (DxBxH) - Vægt 5 kg


Professionel mixer med lydkvalitet i særklasse. Core mix-4 USB er en professionel mixer til en meget stærk pris. med den indbyggede MP3 afspiller kan der sidde en USB stick i - uden man behøver PC tilkoblet. God feature, hvis der skal spilles musik uden DJ (og DJ´ens) PC er til stede

Kan ses i vores udstilling hvis ikon ovenfor viser "på lager".


• 2 Build-in USB PC/MAC audio interfaces
• 60mm VCA faders
• MP3 USB SD recorder
• Variable FX send / Return each channel
• LED VU meter each channel
The CORE MIX-4USB is a 4 channel DJ club mixer with 12 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-4USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a short fader. It has 2 microphone channels with a 3 band EQ, talk-over function and an on/off switch to make MC-ing safe and easy for party jocks & MC's. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot meters are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and a MP3 player-recorder. The MP3 module can record and playback your life performance directly on an USB or SD device.

Inputs channels: 2 x Microphone, combo XLR/Jack 8 x Line, RCA 2 x Phono, RCA 2 x USB, Type B 1 x Return RCA Output channels: 1 x Record, RCA 1 x Booth, RCA 1 x Master unbalanced, RCA 1 x Master balanced, XLR 1 x Headphones, TRS 6.3mm Jack 2 x USB, Type B 1 x Send, RCA

USB Port: Audio in- & output interface for PC & Mac, 48 KHz, 16 bit Channel EQ range: -26dB / +12dB Microphone EQ range: -12dB / +12dB Frequency response: 20Hz -20Khz T.H.D: <0.1% MP3 Module: 128Kbit 44.1 Khz, Max 16GB Dimensions: 310 x 380 x 88 (WxDxH) Power supply: 100-240V AC, 50/60Hz Power consumption: 13 Watt Weight: 5Kg Full specification available in manual

Leverandør beskrivelse:
• 2 Build-in USB PC/MAC audio interfaces
• 60mm VCA faders
• MP3 USB SD recorder
• Variable FX send / Return each channel
• LED VU meter each channel
The CORE MIX-4USB is a 4 channel DJ club mixer with 12 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-4USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a short fader. It has 2 microphone channels with a 3 band EQ, talk-over function and an on/off switch to make MC-ing safe and easy for party jocks & MC's. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot meters are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and a MP3 player-recorder. The MP3 module can record and playback your life performance directly on an USB or SD device.
