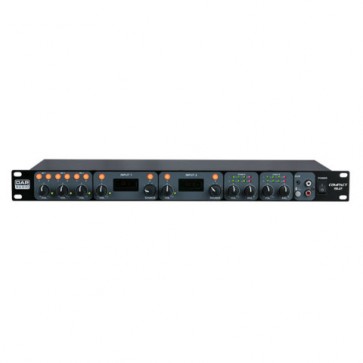

DAP Compact 9.2 - 9 kanal 1U mixer2 zoner

• 19" mixer m. 9 kanaler og 2 zoner - 1 unit højde
• 6 line indgange og 3 mikrofoner (assignable)
• 2 output zoner - Balanceret XLR output
• Minijack og line indgang på front. t. bl.a. tlf
• EQ og gain settings på bagside
• 2 stk. Assignable Input vælger med display
• Master EQ: 80Hz, 2,5KHz, 12KHz, -6dB / +6dB
• Mål 481 x 44 x 175 mm (LxHxD) - vægt 2,2kg
• Ekstern strømforsyning


Med den kompakte størrelse er Compact 9.2 perfekt til montering i rack's og mindre installationer. Med de mange funktioner, der kan stille bag på mixeren, er der mindre chance for "pilfingre", der ændrer på indstillingerne.

Hvert input kan assignes til at køre i input A, B eller både A og B.

Leverandør beskrivelse:
• Channel displays that show the input source
• Gain settings at backpanel
• Main EQ settings at backpanel
• Front input for phone/mp3 devices
• Ideal for non-technical users
The Compact 9.2 1U installation mixer is built to combine maximum audio possibilities and needs for a pub, school, or public area without scarifying on the ease of use. The user can adjust 3 microphone levels and 2 line levels. Both line levels have 6 selectable input sources which are shown on a clear display. On each line input it is possible to select a pre-programmed label which is shown on the display, so there is no need to do difficult programing. This will help users to select the desired source for the desired area, because the Compact 9.2 also has 2 individual zones. All gain, EQ, phantom power and technical settings are on the backside. Once the installer has set everything correctly the user doesn't need to worry about difficult settings, only volume and source select are available on the front panel. The front panel also has a special input if you like to connect a device instantly. This input can be switched between line and phone mode. The phone mode adjusts the input sensitivity into the correct value for MP3 players, smartphones or tablets. Now you can playback your MP3 devices directly without signal loss. The Compact 9.2 is the perfect solution for situations where non-technical users need to operate professional audio systems.
