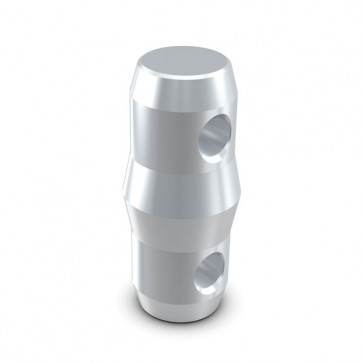

Æg til samling af GT bro

• "Æg" til GT bro / truss
• 80mm højt
• 28,95mm Ø ved hul
• 34,7mm Ø midt på
• Konisk hul mål fra begge sider:10,2mm/11,4mm
• Mål mellem små huller: 36,5mm (se foto)
• Endekanter semi blødt afrundet
(modsat PACSM der er mere skarpt afrundet) (ses ikke på foto)

Æg / samlestykke til de fleste typer Global Truss og Eurotruss

Æg / samlestykke till Milos type GTU, QTU

Leverandør beskrivelse:
The Showtec PRO-30 truss is made of 50mm alu-pipe with a thickness of 2mm and 16mm braces. This is the most used construction system for discotheques, stages, theatres and suitable for many more applications. The PRO-30 is available in following models: 2 point step system (S), 3 point triangle system (T) and 4 points square system (Q). The system elements are joined with help of conical connection coupling. Showtec offers 3 different coupling systems with different compatibility shown in the below overview. All Showtec Pro-30 truss systems are TÜV certificated. To recognize your truss system you can check the diameter at the pin insert part of your spigot.
• P Truss Compatible with standard Milos truss
systems (Ø 29,8mm)
• F Truss Compatible with Prolyte truss systems (Ø
27,8mm)
• G Truss Compatible with Global & Euro truss
systems (Ø 29,0mm) Each PRO-30 truss item contains connector sets
